220530

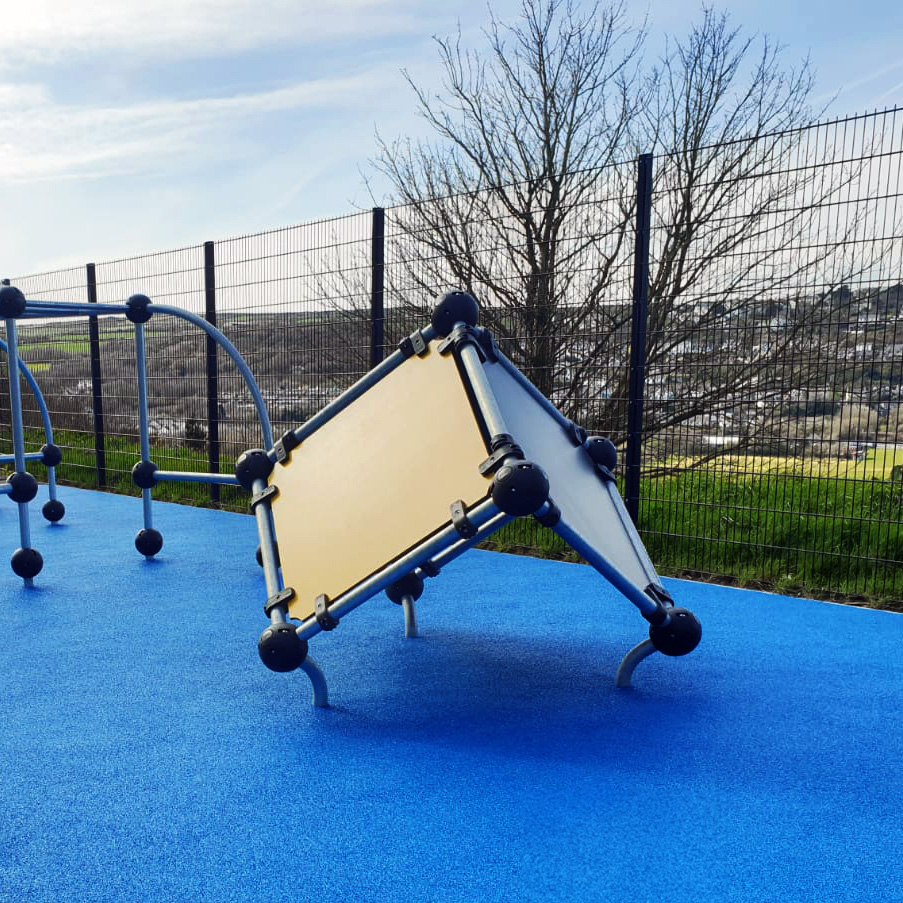

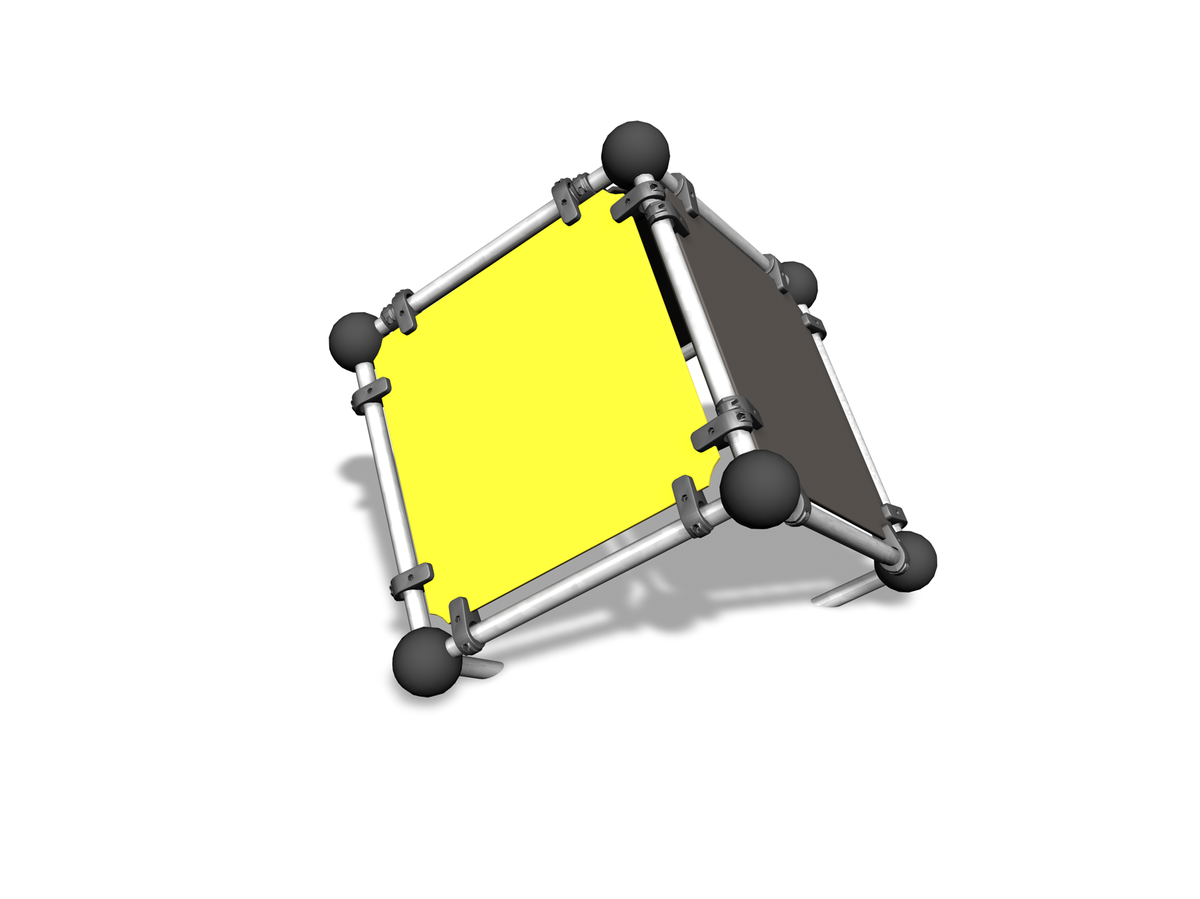

Tic-tac Cube S
A multifunctional cube for jumping, launching and landing. The device has three platforms and a total height of 1,550 mm. It is suitable for children due to its small size, but teens can also practise various moves on the cube.
Safety StandardsEN 1176-1:2008
User Age6
Amount Of Users3
Download Product SheetTechnical Information
Length
2020MM
Width
1780MM
Height
1550MM
Heaviest Part
24.7KG
Largest Part
1034MM
Min Space Height
3350MM
Falling Space Area
19.3M²
Falling Space Length
5020MM
Falling Space Width
4850MM
Impact Area
17.2M²
Max Free Fall Height
1550MM
Materials
Material Text
The frame is made of a hot-dip galvanised steel tube measuring 60 mm in diameter. The ball joints and panel fastenings of the frame are made of glass-fibre reinforced polyamide plastic for outdoor use. They are highly durable against temperature and weather changes and physical impacts. Platform surfaces are made of 15 mm thick HPL panels, which are durable against wear and different weather conditions.
Installation
Installation Time
6H (for 1)
Netto Weight
144.787KG
