Spider Cage Xs

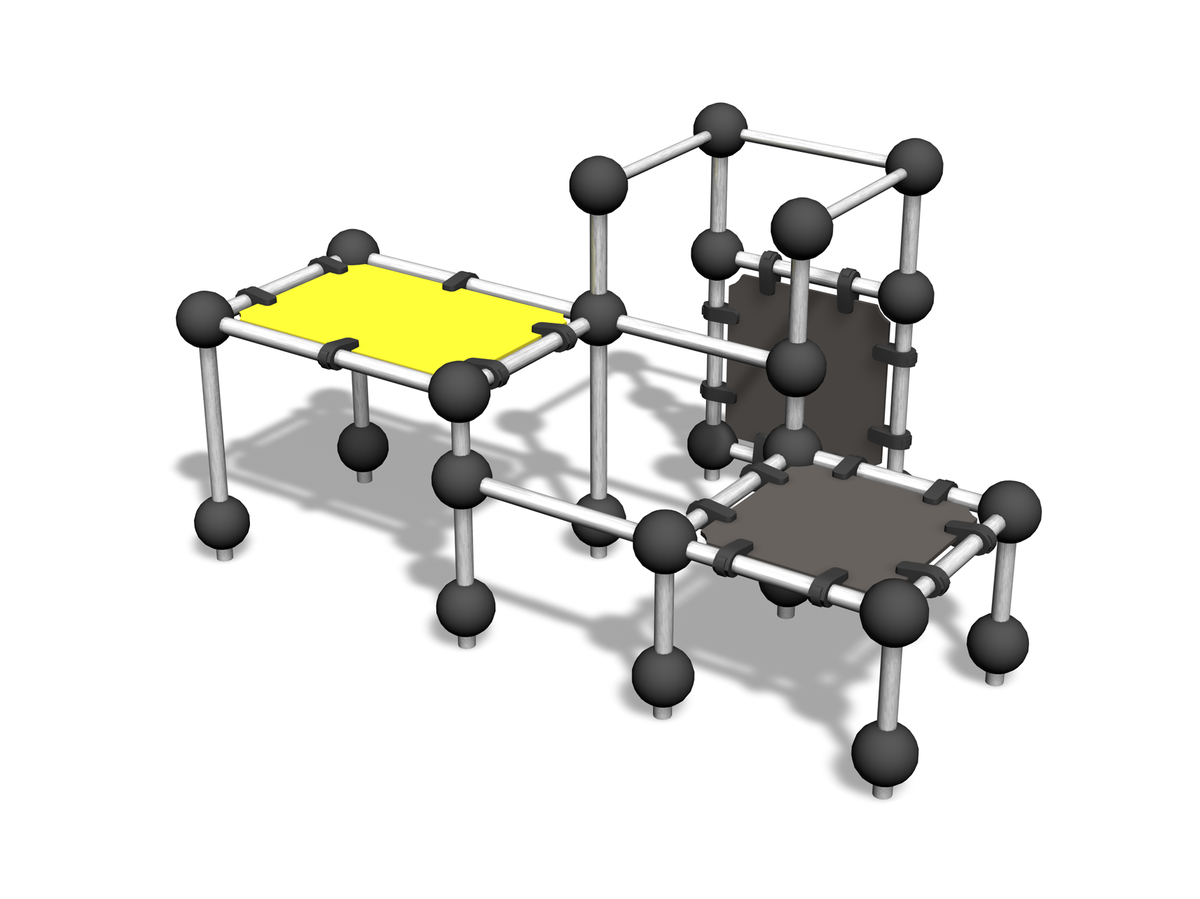

Parkour frame suitable for a small space. The frame holds two platforms at different heights (650 mm and 960 mm), a wall and hanging bars. There are sections for hanging, climbing over, passing under and jumping. The frame is made of a hot-dip galvanised steel tube measuring 60 mm in diameter.

Safety StandardsEN 1176-1 TÜV
User Age6
Download Product Sheet

Technical Information

Length

2880MM

Width

1770MM

Height

1500MM

Min Space Height

2760MM

Falling Space Area

22.1M²

Impact Area

22.1M²

Max Free Fall Height

1435MM

Materials

Material Text

The ball joints and panel fastenings of the frame are made of glass-fibre reinforced polyamide plastic for outdoor use. They are highly durable against temperature and weather changes and physical impacts. Platform surfaces are made of 15 mm thick HPL panels, which are durable against wear and different weather conditions.

Installation

Installation Time

16H (for 1)

Netto Weight

254.732KG
