220523

Spider Cage M

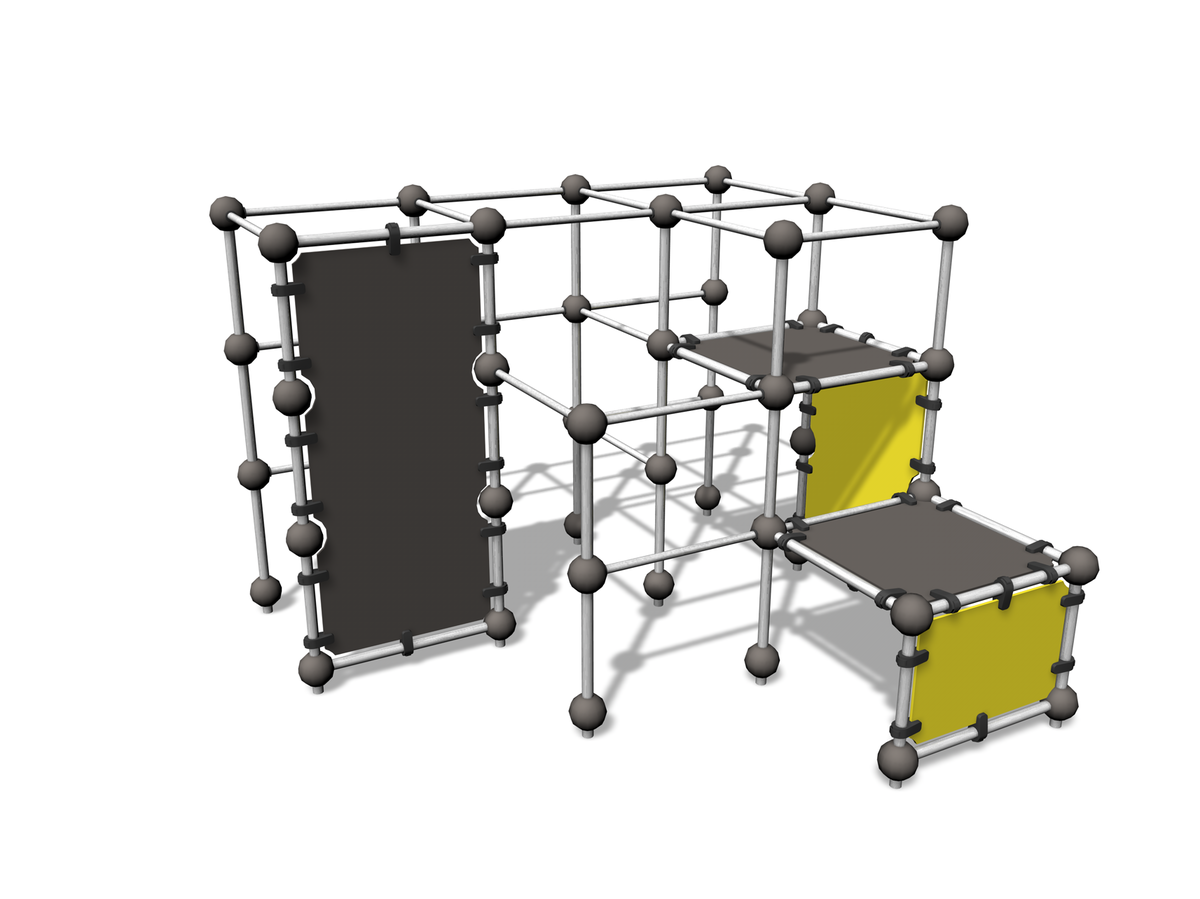

Parkour frame that is perfect for wall runs and underbars. The frame holds two platforms at different heights (960 mm and 1,745 mm), a 2,600 mm high wall and hanging bars. There are sections for hanging, climbing over, passing under and jumping. Challenging climbing and hanging sections also for children. Even advanced parkour enthusiasts will be able to challenge their abilities here. Suitable also for school yards, to offer teens a hangout spot with street cred.

Safety StandardsEN 1176-1 TÜV
User Age10+
Amount Of Users10
Download Product Sheet

Technical Information

Length

3520MM

Width

3520MM

Height

2600MM

Heaviest Part

53KG

Largest Part

2278MM

Min Space Height

4400MM

Falling Space Area

45.4M²

Falling Space Length

7750MM

Falling Space Width

7070MM

Impact Area

45.4M²

Max Free Fall Height

2530MM

Number Of Towers

2

Materials

Material Text

The frame is made of a hot-dip galvanised steel tube measuring 60 mm in diameter. The ball joints and panel fastenings of the frame are made of glass-fibre reinforced polyamide plastic for outdoor use. They are highly durable against temperature and weather changes and physical impacts.

Installation

Installation Time

31H (for 1)

Netto Weight

590.477KG
