081006M

Back

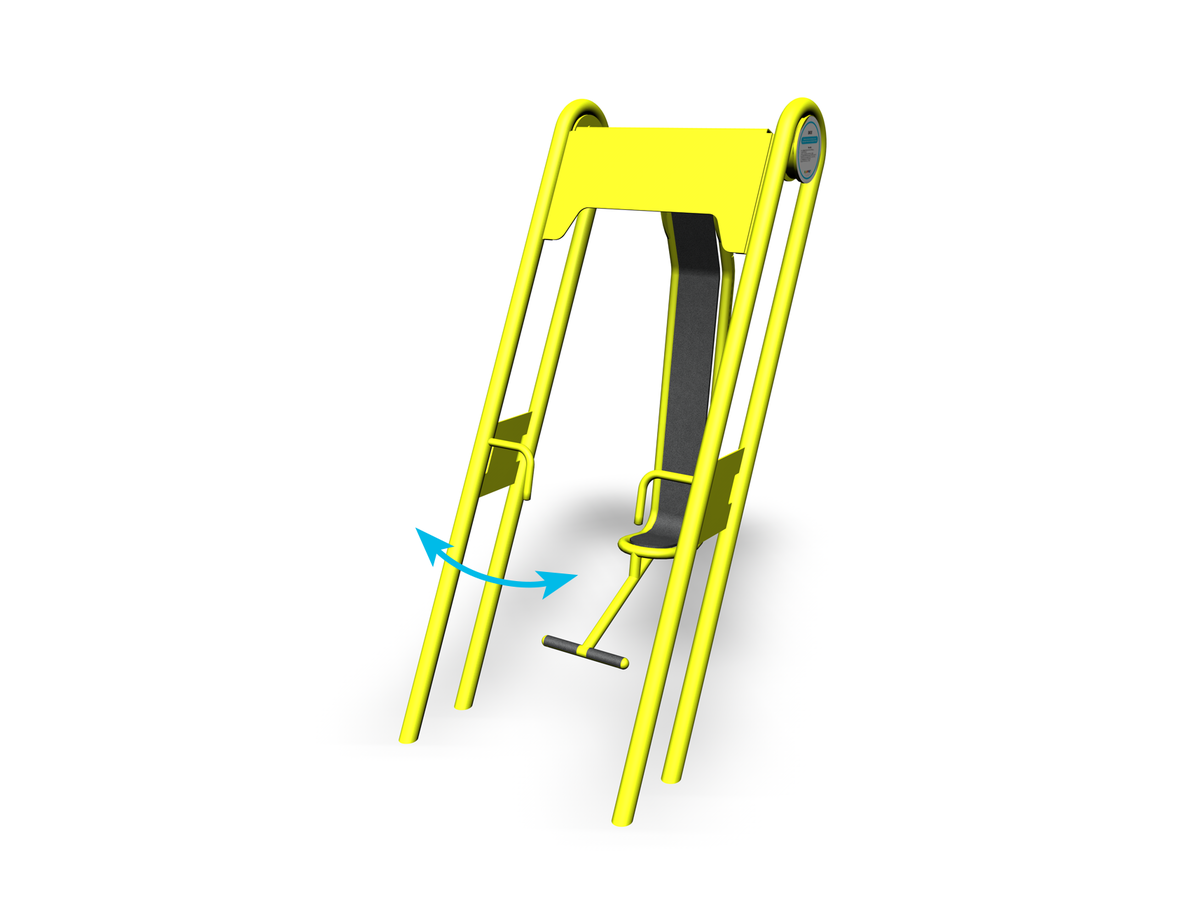

The set includes a seat with footrests, hand grips and a frame. The total height is 2,560 mm, and the seat is at 650 mm. The Back equipment can be used to train the back, shoulder and arm muscles. Regular activation of the shoulder area improves the circulation and helps to prevent neck pain and headaches. Back can be installed on loose fill material also.

Safety StandardsEN 16630 TÜV
Amount Of Users1
Download Product Sheet

Technical Information

Length

1510MM

Width

1130MM

Height

2560MM

Heaviest Part

65KG

Largest Part

65MM

Min Space Height

2150MM

Area Of Movement

20.1M²

Area Of Movement Length

5340

Area Of Movement Width

4130

Configurable

Yes

Max Free Fall Height

650MM

Materials

Material Text

All moving parts are equipped with ball bearings, which ensure pleasant movements for the user. Ball bearings also guarantee a long product life. The ball bearings are permanently lubricated and do not require regular maintenance. Sitting surfaces are equipped with a non-slip and comfortable EPDM rubber granule mat specifically intended for outdoor use. The granular structure ensures that the surface only slightly reacts to temperature changes; it never feels too cold or too hot.

Installation

Netto Weight

223.899KG
