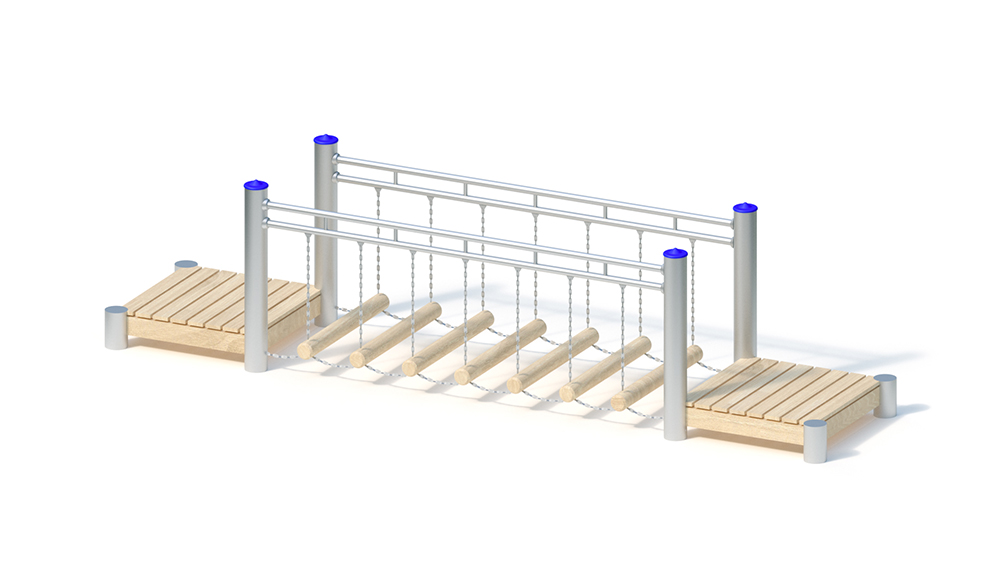

Wobbly bridge

Key Attributes

Age Group


Area of Use

Public Playgrounds



Suitable for

Suitable for
children from 2 years of age,
public playgrounds, etc.
Exercise activities

Techincal Specifications

Lifting Device


Total Length

4.15 m

Total Width

0.95 m

Total Height

1.05 m

Minimum Space Length

7.15 m

Minimum Space Width

3.95 m

Minimum Space Height

1.05 m

Heaviest Single Piece

80.00 kg

(Total) Weight

215.00 kg

Free Height of Fall

0.20 m

Platform Heights

0.20 m


Foundation 1

8 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 2


Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

2 h

Assembly Details

Assembly time 2 fitters each 1.5 hours (without foundation creation)

Technical Data

Technical data
Floor area: 0.95 x 4.15 m
Minimum space: 3.95 x 7.15 m (26 m²)
Total height: 1.05 m
Platform height: 0.20 m
Weight: 80 kg, heaviest individual part,
215 kg in total

posts Support posts made of stainless steel tube Ø 12 cm covered with non-detachable post caps made of stainless steel.

floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Attachment parts – wobbly bridge on tandem traverse, running timbers made of robinia Ø 10 cm. Fine-linked handrail chains made of stainless steel.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
8 pcs. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.51 m³

Free fall height
0.20 m
