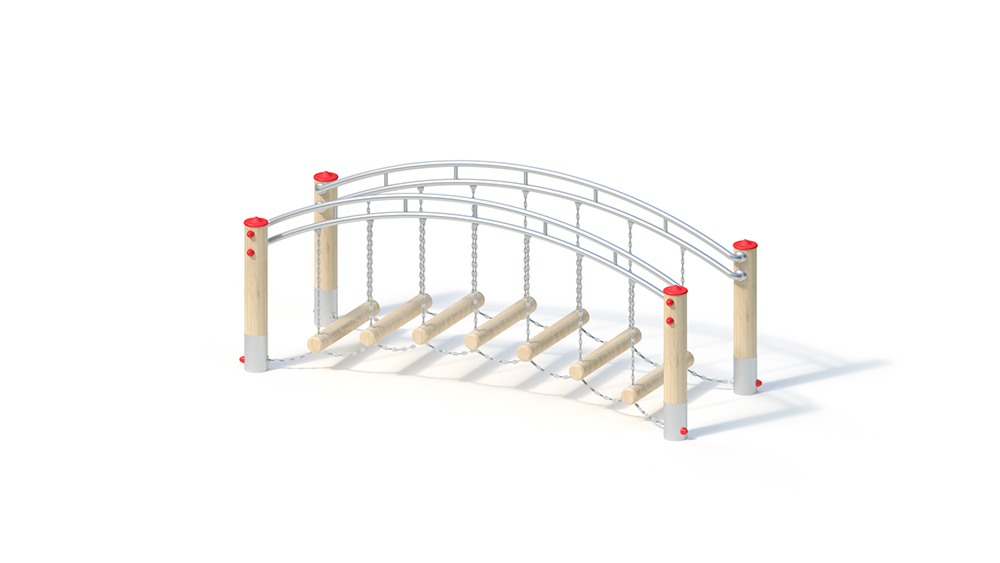

Wobbly bow
Key Attributes
Age Group
3+
Area of Use
Public Playgrounds
Activity
Balance
Suitable for
Suitable for
children from 3 years of age,
public playgrounds, etc.
Exercise activities
Techincal Specifications
Lifting Device
-
Total Length
2.55 m
Total Width
0.95 m
Total Height
1.10 m
Minimum Space Length
5.55 m
Minimum Space Width
3.95 m
Minimum Space Height
1.10 m
Heaviest Single Piece
60.00 kg
(Total) Weight
115.00 kg
Free Height of Fall
0.40 m
Platform Heights
-
Foundations
Foundation 1
4 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
1 h
Assembly Details
Assembly time 2 fitters 1 hour each (without foundation creation)
Technical Data
Technical data
Floor area: 0.95 x 2.55 m
Minimum space: 3.95 x 5.55 m (20 m²)
Total height: 1.10 m
Bridge height : 0.40 m
Weight: 60 kg heaviest individual part
115 kg in total
Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.
Attachment parts – wobbly arch on tandem traverse, running timbers made of robinia Ø 100 mm, delicate handrail chains made of stainless steel
Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.
Foundations (on site)
4 pcs. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.26 m³
Free fall
0.40 m
