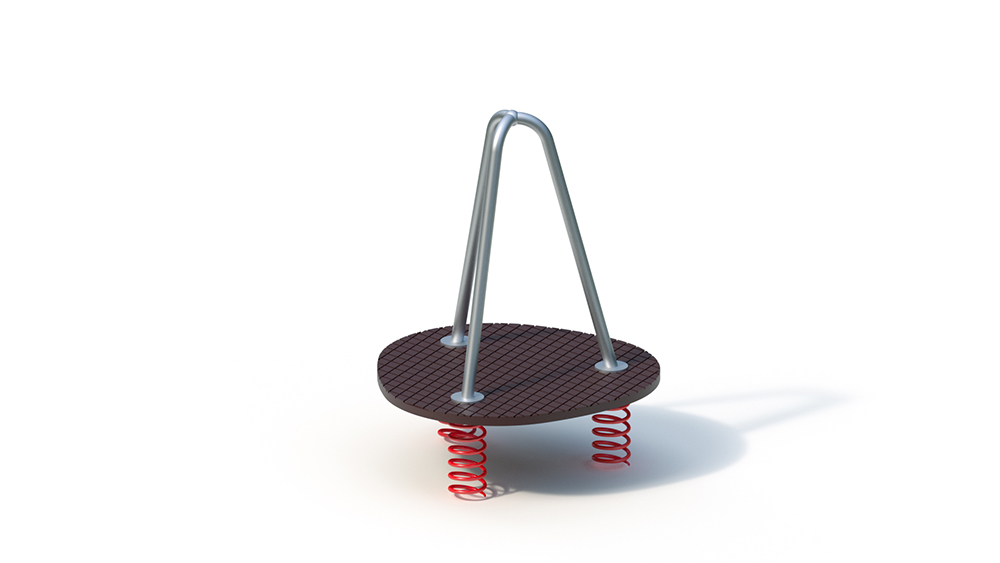

Wobble plate
Key Attributes
Age Group
3+
Area of Use
Public Playgrounds
Activity
Physical Activity
Suitable for
Suitable for
children aged 3 and over,
public playgrounds, etc.
Exercise activities.
Techincal Specifications
Lifting Device
-
Total Length
1.00 m
Total Width
1.00 m
Total Height
1.00 m
Minimum Space Length
5.00 m
Minimum Space Width
5.00 m
Minimum Space Height
1.00 m
Heaviest Single Piece
55.00 kg
(Total) Weight
63.00 kg
Free Height of Fall
0.30 m
Platform Heights
-
Foundations
Foundation 1
1 piece - 0.80 x 0.80 x 0.35 m volume: 0.18 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
1 person
Assembly Time
1 h
Assembly Details
Assembly time 1 fitter 1 hour
Technical Data
Technical data
Base area: Ø 1.00 m
Minimum space: Ø 5.00 m (20 m²)
Height: 1.00 m
Weight: 55 kg heaviest single part
63 kg in total
Wobble platform: plate made of highly compressed synthetic resin wood (PAGHOLZ), highly wear-resistant, weather and temperature-resistant, UV stable, non-slip surface thanks to milled grooves, 20 mm thick.
Retaining bracket: Stainless steel
Compression spring: Special spring wire Ø 12 mm The
device is anchored via a flange ring that has to be set in concrete separately.
Foundation (on site)
1 pc. Ø 0.80 x 0.35 m
amount of concrete: 0.18 m³
Free fall height
0.30 m
Please note:
Under all playground equipment that causes forced movement of the user (e.g. swings, slides, seesaw devices, cable cars, carousels, etc.), shock-absorbing floors must be provided over the entire impact area.
