Wobble plate
Key Attributes
Age Group
3+
Area of Use
Public Playgrounds
Activity
Physical
Suitable for
Suitable for
children from 3 years,
public playgrounds etc.,
exercise activities.
Techincal Specifications
Lifting Device
-
Total Length
0.45 m
Total Width
0.45 m
Total Height
0.35 m
Minimum Space Length
3.60 m
Minimum Space Width
3.60 m
Minimum Space Height
0.35 m
Heaviest Single Piece
-
(Total) Weight
20.00 kg
Free Height of Fall
0.35 m
Platform Heights
-
Foundations
Foundation 1
1 piece - 0.80 x 0.50 x 0.10 m volume: 0.04 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
-
Assembly Time
-
Assembly Details
The assembly time is delivered pre-assembled in one piece
Technical Data
Technical data
Base area: Ø 0.45 m
Minimum space: Ø 3.60 m (10 m²)
Height: 0.35 m
Weight: 20 kg in total
Rocker frame: stainless steel

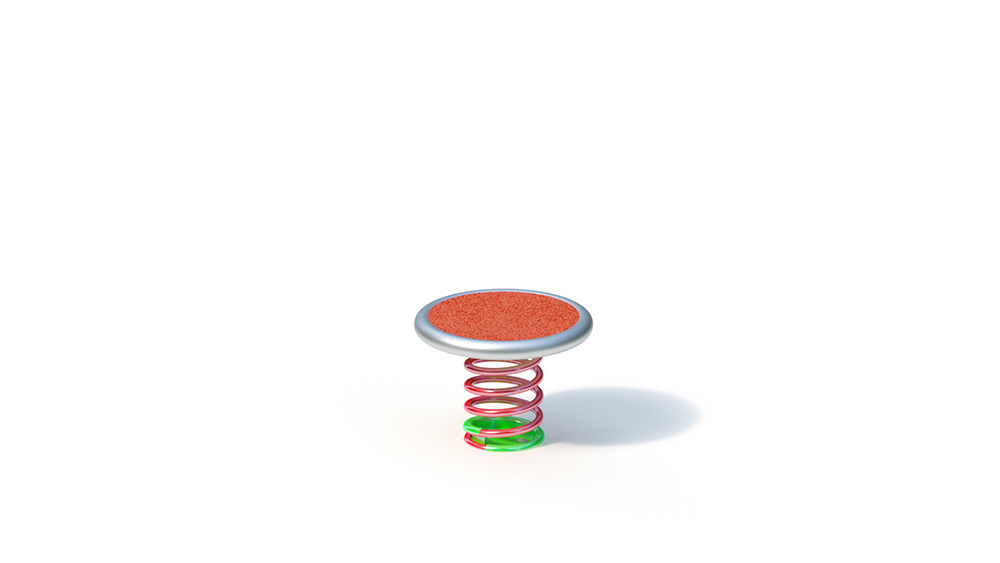

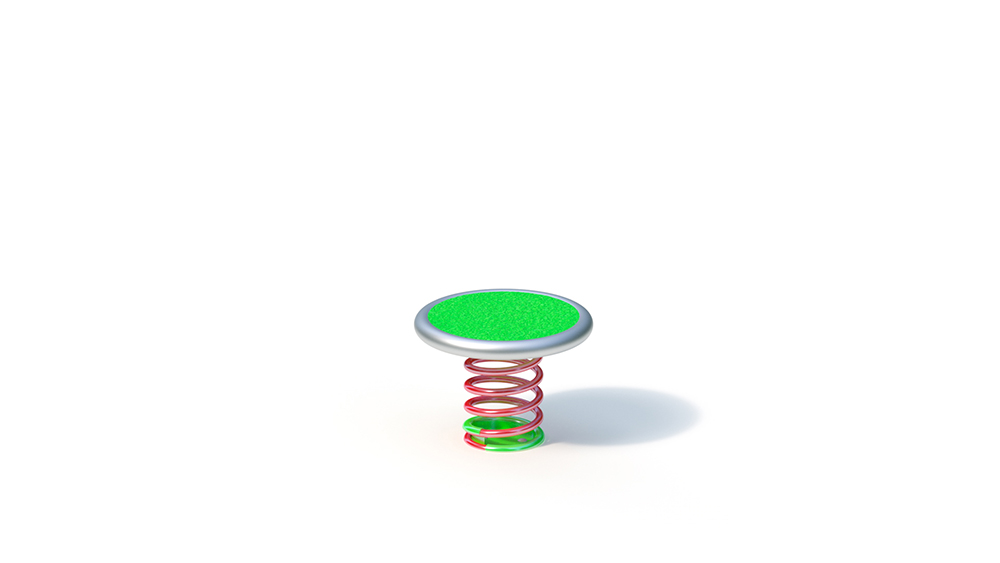

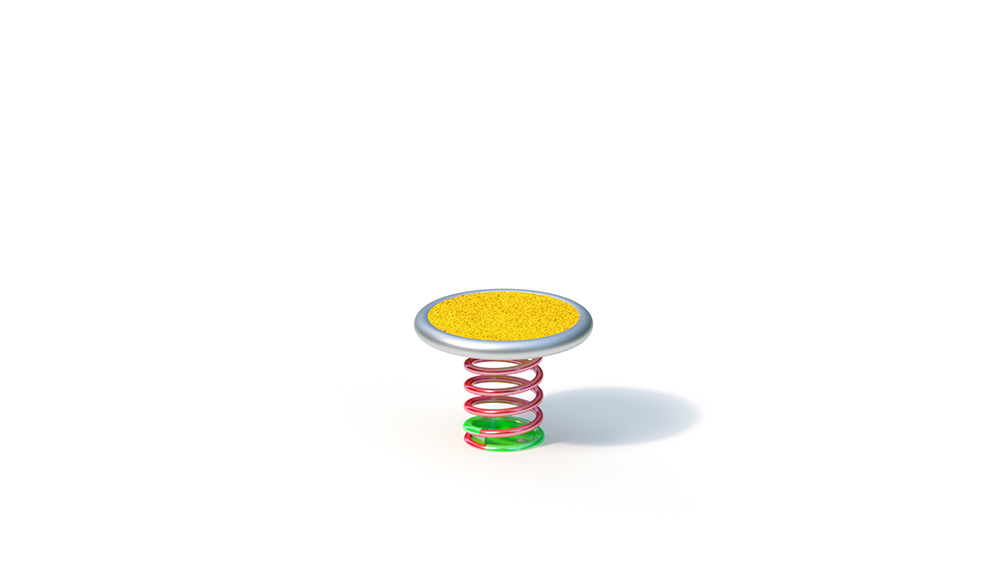

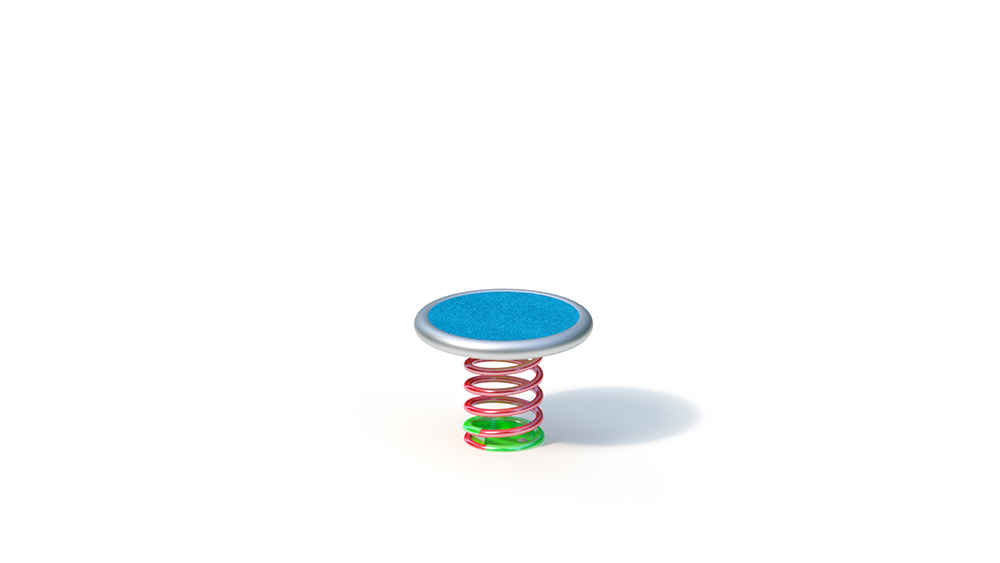

Rocker spring: special spring wire Ø 20 mm Wobble plate: stainless
steel / rubberized / weatherproof. Rubber granulate color optionally: red, green, blue and yellow.
Including ground anchor
Foundation
In the case of light soil (usually loose bulk material such as bark mulch, wood chips, sand, gravel), the base plate of the ground anchor must be covered with a foundation (0.50 x 0.80 x 0.10 m).
Amount of concrete: 0.04 m³
Free height of fall
0.35 m.
Installation in areas without shock-absorbing properties (such as in pedestrian zones) is permitted.
A foundation anchor (item no. 1090219) is available for a surcharge for easy installation at the same height in synthetic fall protection. Even if the spring rocker is only removed from time to time, the floor opening is closed at the same height by a corresponding stainless steel plate or HPL plate.
