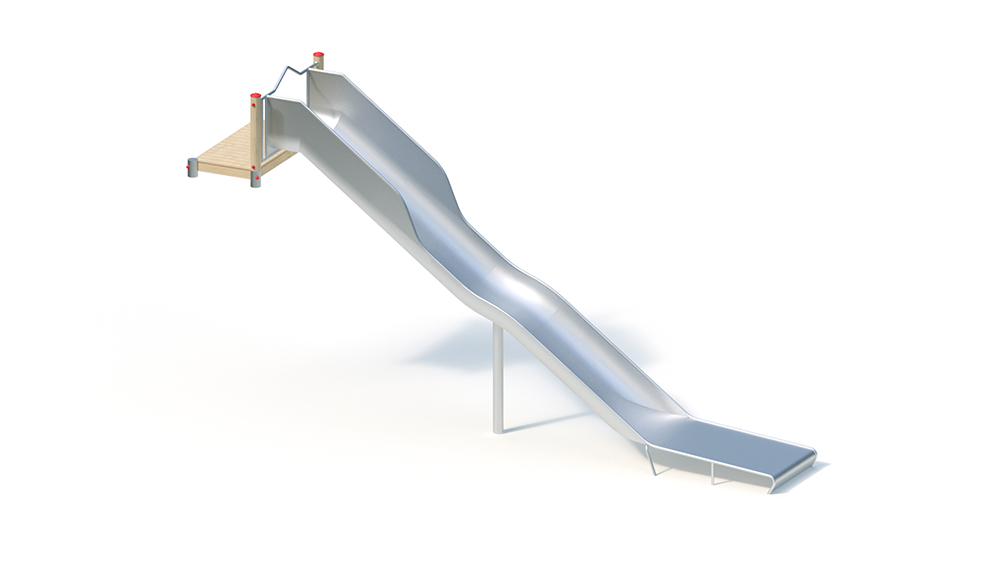

Wide slide (3.00)

4+

Public Playgrounds

Slide

Suitable for
children from 4 years,
public playgrounds, etc.,
exercise activities

-

7.35 m

1.75 m

4.00 m

10.85 m

4.75 m

4.50 m

330.00 kg

410.00 kg

3.00 m

0.20 m

0.40 x 0.40 x 0.60 m volume: 0.10 m3 1.25 x 0.90 x 0.40 m volume: 0.45 m3

-

-

0.40 x 0.40 x 0.40 m volume: 0.07 m3

-

-

2 pers.

2 h

Assembly time 2 fitters 2 hours each (without foundation creation)

Technical data
Base area: approx. 1.75 x 7.35 m
Minimum space: approx . 4.75 x 10.85 m
(for a maximum free fall height of 1.50 m)
Platform height
: 0.20 m
Slide installation height : 0.20 m seat height : 0.30 m Slide installation height
above
slide outlet zero: 3.00 m
(for hill height 2.80 m) Slide inclination:
36 ° Slide width:
1.10 m
Slide plate thickness: 2.5 mm

Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Support posts that are flush with the platform are sealed with welded-on circular blanks made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets and a continuous bolt connection.

Add-on parts – add -on wide slide, 1.10 m wide, sheet metal thickness: 2.5 mm, with anti-roll-off fall protection above the single-seat part.
One-piece stainless steel construction, with additional support in the outlet area. Speed ​​regulation by shaft. Particularly quiet thanks to the shape of the trough.

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
4 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.40 x 0.40 x 0.60 m
1 pc. 0.90 x 1.25 x 0.40 m

Free fall height
platform: 0.20 m
slide: Depending on the course of the terrain, the free fall height and the extent of the impact surface result from the vertical distance between the lower edge of the slide and the upper edge of the terrain.
The impact surface in the slide area must be equipped with a floor material that meets the requirements of Table 4 (see EN 1176-1). If another material is to be used, its shock-absorbing properties must be proven by testing according to EN 1177: 2008. The floor area surrounding the outlet part of the slide must meet the requirements for a critical fall height of at least 1000 mm (see EN 1176-3).
