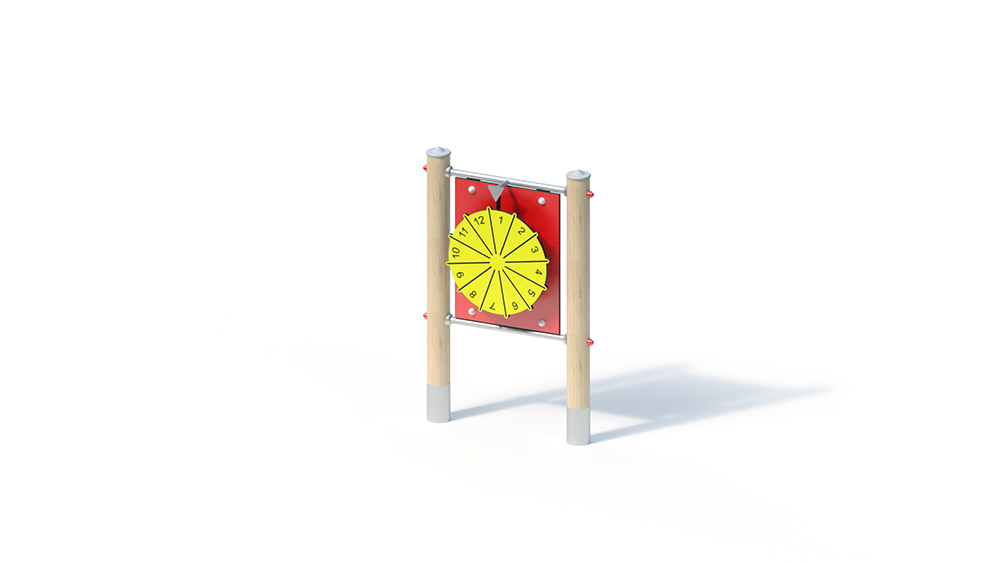

Wheel of fortune
Key Attributes
Age Group
1+
Area of Use
Supervised Playgrounds
Activity
Manual
Suitable for
Suitable for
all ages,
supervised playgrounds
manual activities
Techincal Specifications
Lifting Device
-
Total Length
0.95 m
Total Width
0.25 m
Total Height
1.50 m
Minimum Space Length
3.95 m
Minimum Space Width
3.25 m
Minimum Space Height
1.50 m
Heaviest Single Piece
30.00 kg
(Total) Weight
65.00 kg
Free Height of Fall
-
Platform Heights
-
Foundations
Foundation 1
2 pieces - 0.40 x 0.40 x 0.60 m volume: 0.10 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
1 h
Assembly Details
Assembly time 2 fitters each 0.5 hours (without foundation creation)
Technical Data
Technical data
Total height: 1.50 m
Area: 0.25 x 0.95 m
Weight: 30 kg heaviest individual part
65 kg in total
Minimum space: 11 m²
Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.
Attachments
– Wheel of fortune wall made of HPL laminate board, fastening between stainless steel tubes Ø 33.7 x 2 mm
Metal components: stainless steel.
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.
Foundations (on site)
2 pcs. 0.40 x 0.40 x 0.60 m
Amount of concrete: 0.19 m³
