0-46650-000

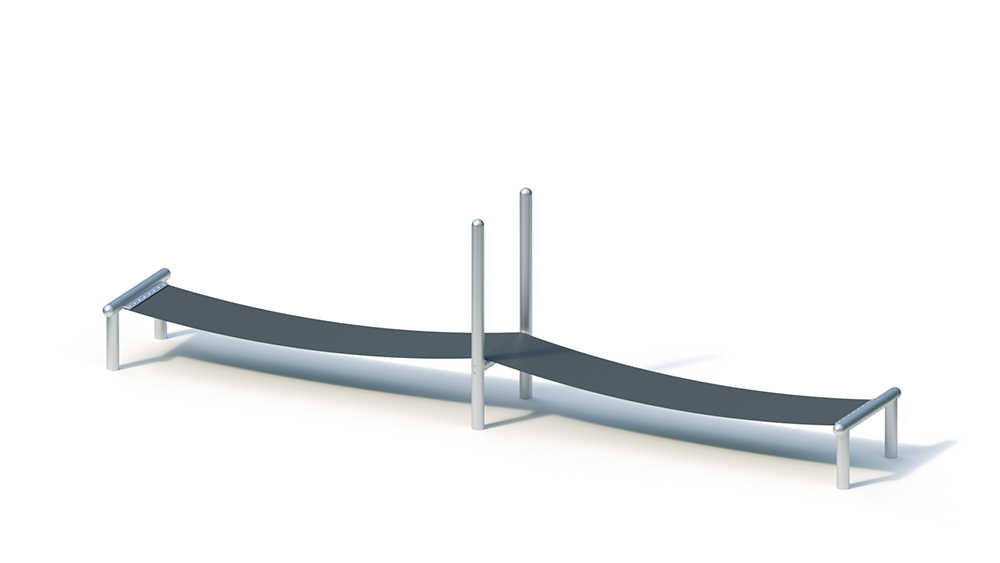

Webbing strap
Key Attributes
Age Group
5+
Area of Use
Public Playgrounds
Activity
Physical
Suitable for
Suitable for
children from 5 years of age,
public playgrounds, etc.
Exercise activities.
Techincal Specifications
Lifting Device
-
Total Length
7.75 m
Total Width
1.30 m
Total Height
2.10 m
Minimum Space Length
10.75 m
Minimum Space Width
4.30 m
Minimum Space Height
2.10 m
Heaviest Single Piece
105.00 kg
(Total) Weight
210.00 kg
Free Height of Fall
0.70 m
Platform Heights
-
Foundations
Foundation 1
3 pieces - 1.40 x 1.00 x 0.50 m volume: 0.70 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
3 h
Assembly Details
Assembly time 2 fitters each 3 hours (without foundation creation)
Technical Data
Technical data
Total height: 2.10 m
Base area: 1.30 x 7.75 m
Minimum space: 4.30 x 10.75 m (44 m²)
Weight: 105 kg heaviest individual part
210 kg in total
– Webbing: fabric belt, black, with fabric insert and solid rubber edges – Webbing holder
: stainless steel construction
Foundations (on site)
3 pcs. 1.00 x 1.40 x 0.50 m
amount of concrete: 2.10 m³
Free height of fall
0.70 m
