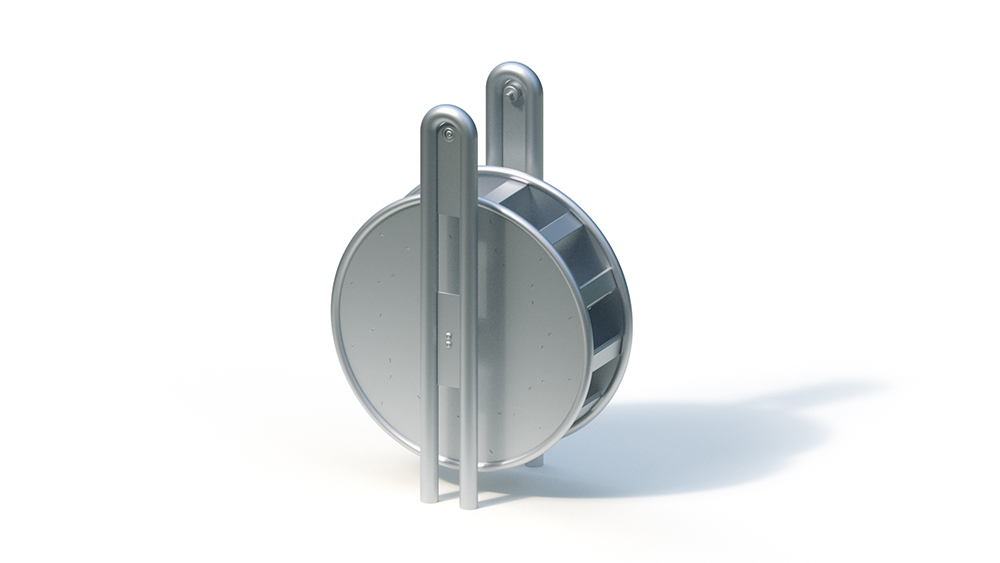

Water wheel (0.60)
Key Attributes
Age Group
-+
Area of Use
Public Playgrounds
Activity
Manual Activity
Suitable for
–
Techincal Specifications
Lifting Device
-
Total Length
0.60 m
Total Width
0.34 m
Total Height
0.90 m
Minimum Space Length
3.60 m
Minimum Space Width
3.45 m
Minimum Space Height
0.90 m
Heaviest Single Piece
-
(Total) Weight
45.00 kg
Free Height of Fall
-
Platform Heights
-
Foundations
Foundation 1
0.70 x 0.50 x 0.50 m volume: 0.18 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
-
Assembly Time
-
Assembly Details
-
Technical Data
Technical data
Floor area: 0.34 x 0.60 m
Minimum space: 3.45 x 3.60 m / approx. 11 m²
Height: approx. 0.90 m
Wheel: Ø 0.60 m
Total weight: 45 kg in total
Welded stainless steel construction with stand, prepared to accommodate the water channel.
12 blades, bevelled flat on the front side and enclosed by side walls.
Sheet thickness 2.5 mm.
Wheel bearings with roller bearings.
Foundations (on site)
1 pc. 0.50 x 0.70 x 0.50 m
amount of concrete: 0.18 m³
Please note:
The K&K waterwheel 0-33236-001 cannot be operated undershot (e.g. in a watercourse) but only from above (overshot) – for example in connection with K&K gutters. Please take this into account in your planning.
