0-33262-001

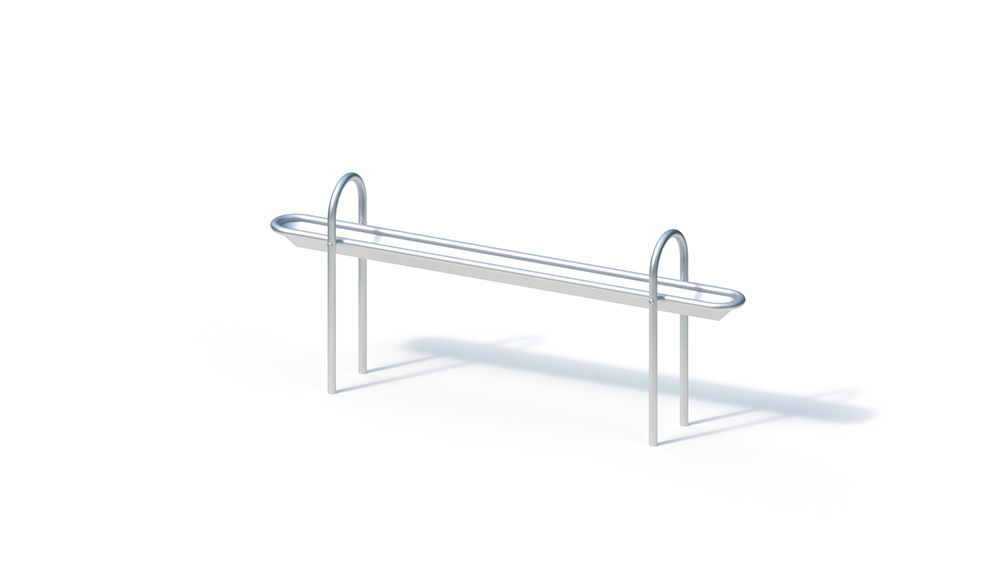

Water trough (2.10)
Key Attributes
Age Group
-+
Area of Use
Public Playgrounds
Activity
-
Suitable for
–
Techincal Specifications
Lifting Device
-
Total Length
2.35 m
Total Width
0.34 m
Total Height
0.90 m
Minimum Space Length
5.35 m
Minimum Space Width
3.34 m
Minimum Space Height
0.90 m
Heaviest Single Piece
-
(Total) Weight
35.00 kg
Free Height of Fall
-
Platform Heights
-
Foundations
Foundation 1
-
Foundation 2
0.50 x 0.50 x 0.50 m volume: 0.13 m3
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
-
Assembly Time
-
Assembly Details
-
Technical Data
Technical data
Floor area: 0.34 x 2.35 m
Height: approx. 0.90 m
Weight: 20 kg heaviest individual part
35 kg in total
Welded stainless steel construction. Sheet thickness: 2 mm / tube Ø 38 mm. 2 stands with stepless inclination for installation for the required gradient for the inlet and outlet of the water.
Foundations (on site)
2 pcs. 0.50 x 0.50 x 0.50 m
amount of concrete: 0.25 m³
