0-33252-000

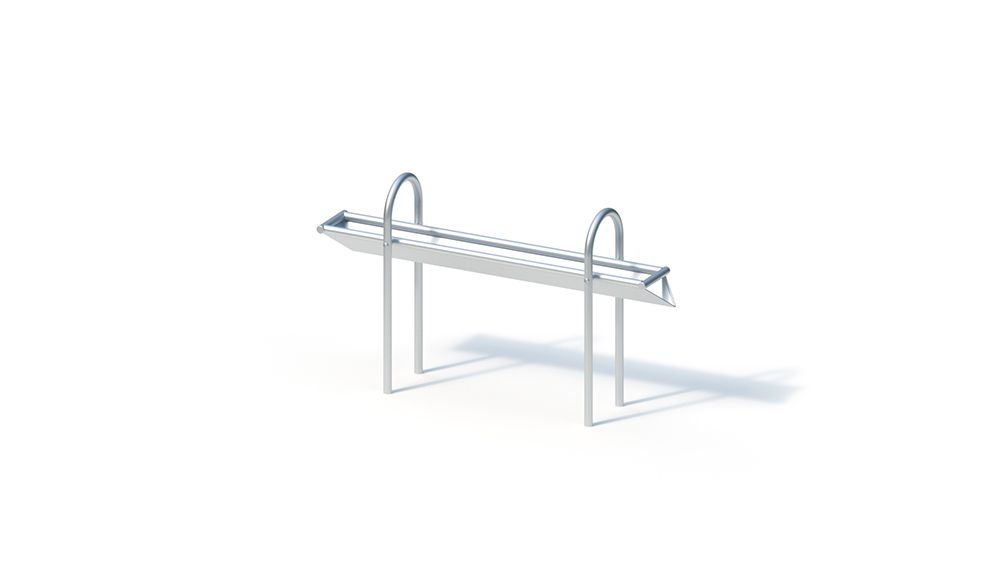

Water trough (1.60)
Key Attributes
Age Group
-+
Area of Use
Public Playgrounds
Activity
Manual Activity
Suitable for
–
Techincal Specifications
Lifting Device
-
Total Length
1.75 m
Total Width
0.34 m
Total Height
0.95 m
Minimum Space Length
3.75 m
Minimum Space Width
3.34 m
Minimum Space Height
0.95 m
Heaviest Single Piece
-
(Total) Weight
32.00 kg
Free Height of Fall
-
Platform Heights
-
Foundations
Foundation 1
-
Foundation 2
0.50 x 0.50 x 0.50 m volume: 0.13 m3
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
-
Assembly Time
-
Assembly Details
-
Technical Data
Technical data
Base area: 0.34 x 1.75 m,
height: approx. 0.95 m
Welded stainless steel construction. Sheet thickness: min. 2 mm / tube Ø 38 mm. Sloping spout. Stepless inclination for installation for the required gradient for the inlet and outlet of the water through additional elevation.
Foundations (on site)
2 pcs. 0.50 x 0.50 x 0.50 m
amount of concrete: 0.25 m³
