0-33411-000

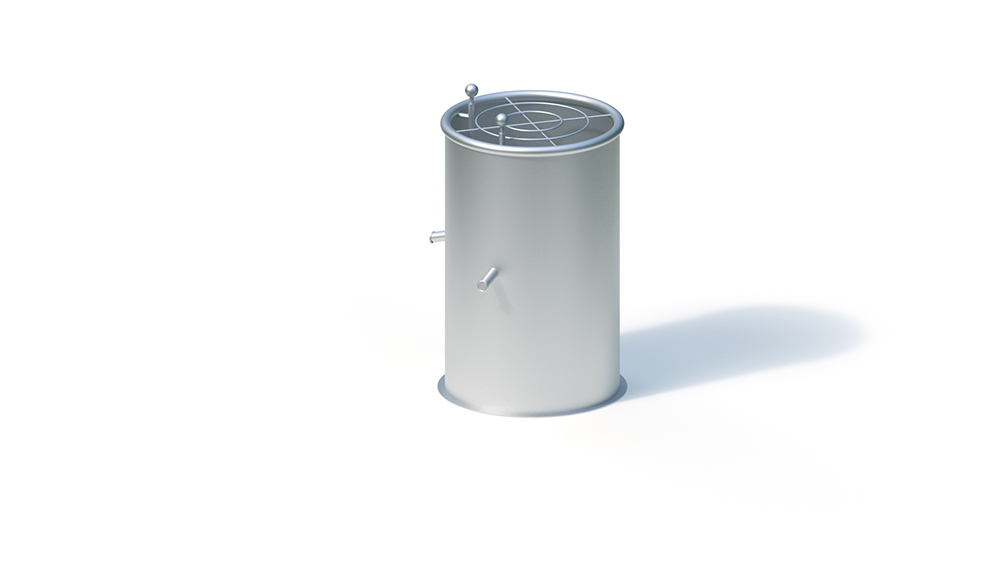

Water tank
Key Attributes
Age Group
-+
Area of Use
Public Playgrounds
Activity
-
Suitable for
–
Techincal Specifications
Lifting Device
-
Total Length
0.68 m
Total Width
0.68 m
Total Height
1.04 m
Minimum Space Length
3.68 m
Minimum Space Width
3.68 m
Minimum Space Height
1.04 m
Heaviest Single Piece
-
(Total) Weight
65.00 kg
Free Height of Fall
-
Platform Heights
-
Foundations
Foundation 1
-
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
-
Assembly Time
-
Assembly Details
-
Technical Data
Technical data
Base: Ø 0.68 m
Height: 1.04 m
Water content: 140 l
Weight: 65 kg in total
– Welded stainless steel construction with 2 water drainage
pipes
– Safety cover grille – Rubber cone lock with locking for complete water extraction – Sheet
thickness: 2.5 mm / pipe Ø 38 mm
– Anchoring on the flange ring
A suitable ring foundation (15165) for anchoring on the flange ring and shaped stones (15170) for building up walls and leveling differences in height or for a secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an additional cost.
