0-33441-000

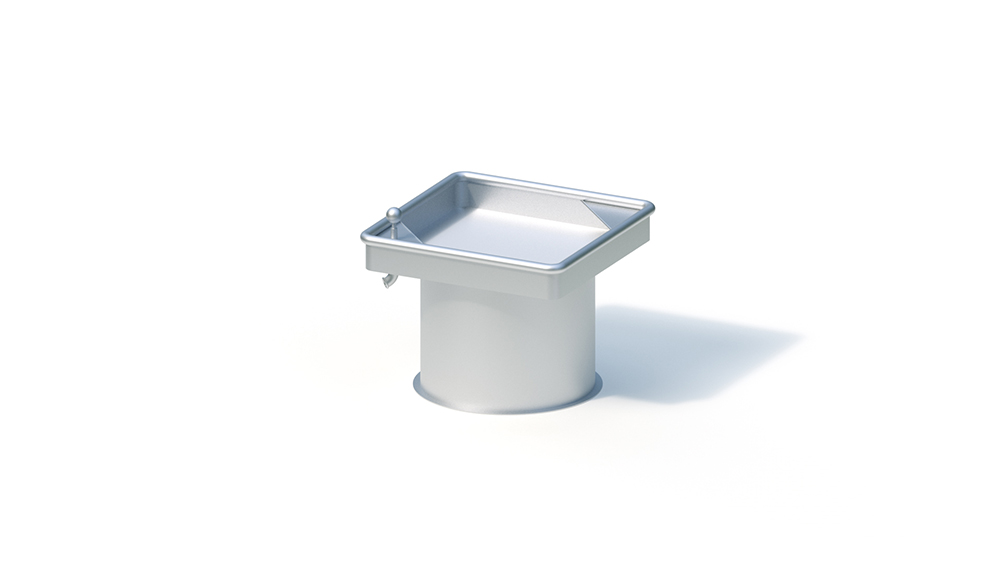

Water table (0.50)

Key Attributes

Age Group

-+

Area of Use

Public Playgrounds

Activity

-

Suitable for

Techincal Specifications

Lifting Device

-

Total Length

0.84 m

Total Width

0.84 m

Total Height

0.65 m

Minimum Space Length

3.84 m

Minimum Space Width

3.84 m

Minimum Space Height

0.65 m

Heaviest Single Piece

-

(Total) Weight

55.00 kg

Free Height of Fall

0.50 m

Platform Heights

-

Foundations

Foundation 1

-

Foundation 2

-

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

-

Assembly Time

-

Assembly Details

-

Technical Data

Technical data
Base area: 0.84 x 0.84 m
Total height: 0.65 m
Weight: 55 kg in total

Welded stainless steel construction with 1 water drainage pipe.
Rubber cone closure with lock for complete water withdrawal. 2 shelves.
Sheet thickness: 2 mm / tube Ø 38 mm.
Anchoring on the flange ring.
A suitable ring foundation (15165) for anchoring on the flange ring and shaped stones (15170) for building up walls and leveling differences in height or for a secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an additional cost.

Free fall height
0.50 m
