0-33440-000
Water table (0.25)
Key Attributes
Age Group
-+
Area of Use
Public Playgrounds
Activity
-
Suitable for
–
Techincal Specifications
Lifting Device
-
Total Length
0.84 m
Total Width
0.84 m
Total Height
0.40 m
Minimum Space Length
3.84 m
Minimum Space Width
3.84 m
Minimum Space Height
0.40 m
Heaviest Single Piece
-
(Total) Weight
45.00 kg
Free Height of Fall
0.25 m
Platform Heights
-
Foundations
Foundation 1
-
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
-
Assembly Time
-
Assembly Details
-
Technical Data
Technical data
Base area: 0.84 x 0.84 m
Total height: 0.40 m
Weight: 45 kg in total

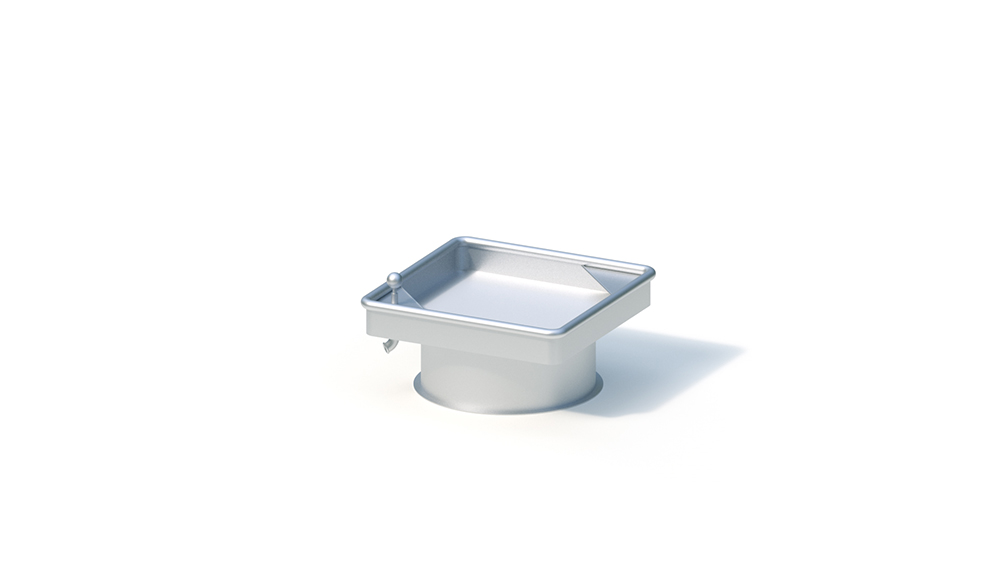

Welded stainless steel construction with 1 water drainage pipe.
Rubber cone closure with lock for complete water withdrawal. 2 shelves.
Tube Ø 38 mm.
Anchoring on the flange ring.
A suitable ring foundation (15165) for anchoring on the flange ring and shaped stones (15170) for building up walls and leveling differences in height or for a secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an additional cost.
Free height of fall
0.25 m
