0-33206-001

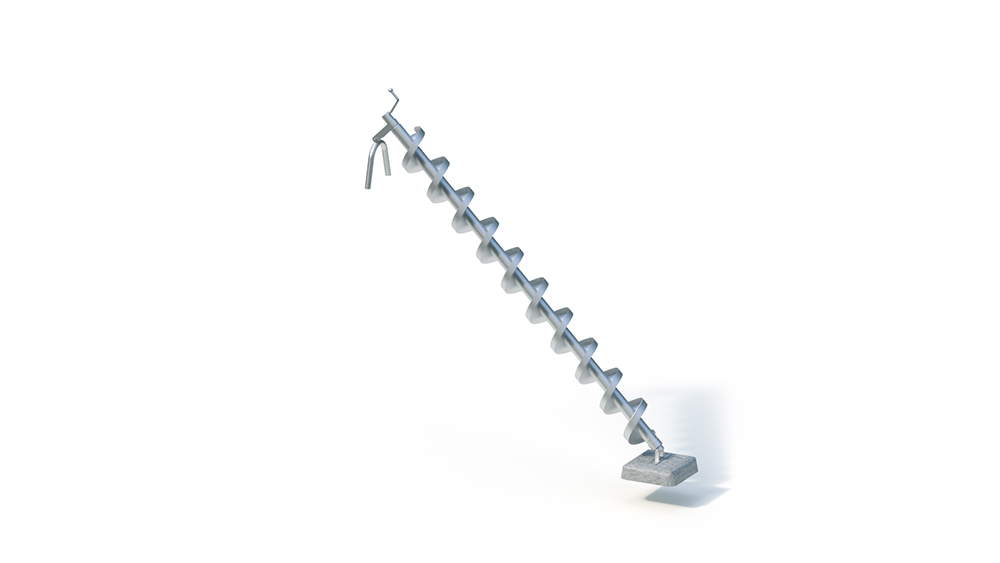

Water spiral (2.50)
Key Attributes
Age Group
-+
Area of Use
Public Playgrounds
Activity
Manual Activity
Suitable for
–
Techincal Specifications
Lifting Device
-
Total Length
2.50 m
Total Width
0.25 m
Total Height
2.24 m
Minimum Space Length
5.50 m
Minimum Space Width
3.25 m
Minimum Space Height
2.24 m
Heaviest Single Piece
45.00 kg
(Total) Weight
49.00 kg
Free Height of Fall
-
Platform Heights
-
Foundations
Foundation 1
0.70 x 0.30 x 0.30 m volume: 0.07 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
-
Assembly Time
-
Assembly Details
-
Technical Data
Technical data
Spiral length: 2.50 m
Outer diameter: 250 mm
Weight: 45 kg Heaviest individual part
49 kg in total
Welded stainless steel construction with roller bearings, hand crank stand for setting in concrete, foot bearing for screwing on. A suitable prefabricated foundation can be supplied at an additional cost.
Foundation (on site)
1 pc. 0.30 x 0.70 x 0.30 m
The assembly time
is delivered in one piece
