0-33204-001

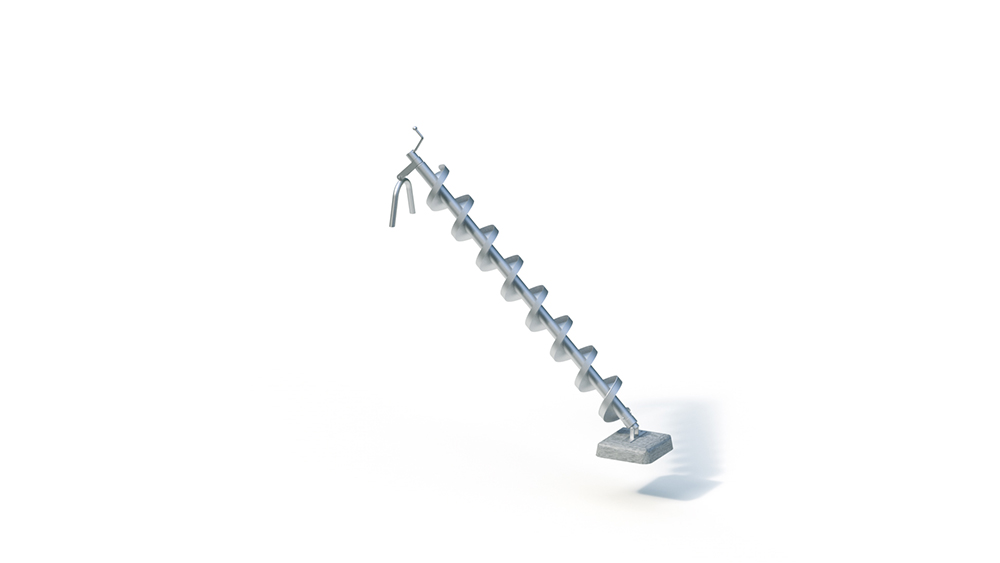

Water spiral (2.00)

Key Attributes

Age Group

-+

Area of Use

Public Playgrounds

Activity

Manual Activity

Suitable for

Techincal Specifications

Lifting Device

-

Total Length

2.00 m

Total Width

0.25 m

Total Height

1.88 m

Minimum Space Length

5.00 m

Minimum Space Width

3.25 m

Minimum Space Height

1.88 m

Heaviest Single Piece

38.00 kg

(Total) Weight

42.00 kg

Free Height of Fall

-

Platform Heights

-

Foundations

Foundation 1

0.70 x 0.30 x 0.30 m volume: 0.07 m3

Foundation 2

-

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

-

Assembly Time

-

Assembly Details

-

Technical Data

Technical data
Spiral length: 2.00 m
Outer diameter: 250 mm
Weight: 38 kg Heaviest individual part
42 kg in total

Welded stainless steel construction with roller bearings, hand crank stand for setting in concrete, foot bearing for screwing on. A suitable prefabricated foundation can be supplied at an additional cost.

Foundation (on site)
1 pc. 0.30 x 0.70 x 0.30 m

The assembly time
is delivered in one piece
