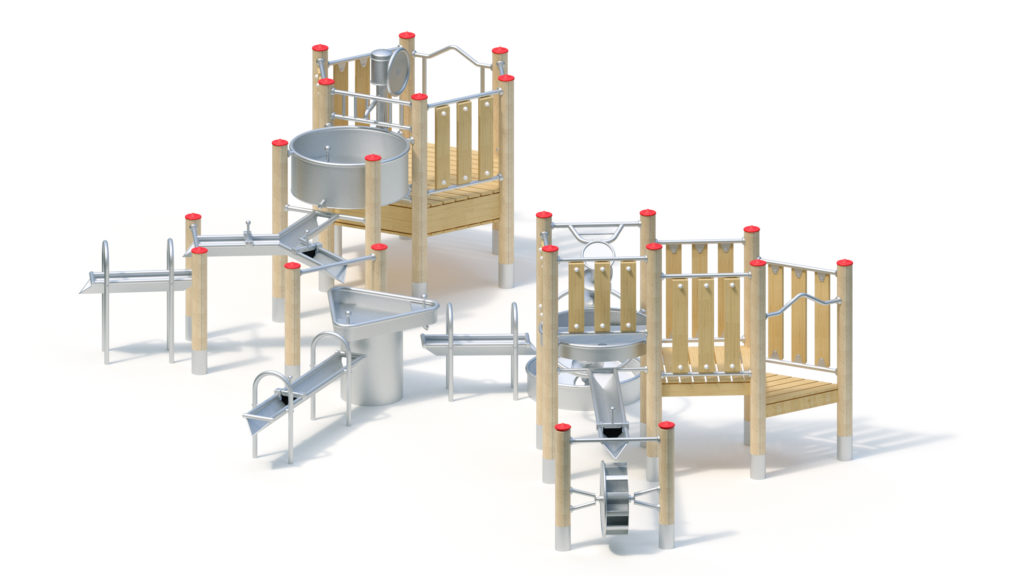

Water play facility

3++

Water play facilities

Manual

Suitable for
children aged 3 and over,
public playgrounds etc.,
manual activities

-

6.40 m

6.25m

2.00 m

9.40 m

9.25m

2.00 m

114.00 kg

1096.00 kg

1.15m

0.60m, 0.80m

21 pieces 0.40 x 0.40 x 0.40 m Volume: 0.06 m3

6 pieces 0.50 x 0.50 x 0.50 m Volume: 0.13 m3

2 people

10 p.m

Assembly time 2 technicians 8 hours each (without foundation construction, without water connection)

Technical data
Base area: 6.25 x 6.40 m
Minimum space: 9.25 x 9.40 m
Platform heights: 0.60/0.80 m

Stand post
Stand post made of robinia plywood, cylindrically milled, Ø 120 mm. Unprotected end grain areas are covered with non-removable stainless steel post caps.
Pipe stand made of stainless steel for the foundation and support of robinia round wood posts, Ø 120 mm, below the playing level.

Platform floor
Platform floor made of boards, 30 mm thick and circumferential squared timber beams 45 x 100 mm. The dried robinia sawn timber is planed, chamfered and free of rotten branches. Non-positive floor fastening using special stainless steel brackets with a continuous bolt screw connection. Pump platform additionally with profiled stainless steel sheet and prepared for mounting the valve combination included in this water feature system. The valve combination will be located immediately below the pump platform. An additional shaft for the valve combination is therefore not required.

Attachments
– U-rail railing, anti-rolling, made of stainless steel tube, Ø 33.7 x 2 mm
– Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm
– Access railing, anti-rolling, made of stainless steel tube, Ø 33.7 x 2 mm, consisting of horizontal railing tube and on both sides vertically arranged parapet tubes
– wooden parapet made of robinia, 125 x 30 mm, fastened between stainless steel tubes Ø 33.7 x 2 mm
– climbing rung (offset) made of stainless steel tube, Ø 33.7 mm
– climbing rung made of stainless steel tube, Ø 38 x 2.5 mm, anti-twist

Water pump with handwheel Article No. 0-33131-001
Water pump for direct connection to a water pipe, suction pipe connection 1 ¼ inch (pipe diameter at least ¾ inch)
Welded stainless steel construction, encapsulated pump housing, pump mechanics with roller and plain bearings, upper pump housing with handwheel must, for example, during removed during the frost period.
Closing cover (“wintering plate”) for the remaining lower pump part is included.

Valve combination 1 1/4″ with hygiene flush (installed below the platform floor)
Device for directly connecting the water pump to a pressurized water line with a fine filter to clean the water from suspended matter, dirt particles, etc. in order to prevent the membrane valves from becoming dirty and thus prevent malfunctions.
Including K&K hygiene flushing: Device for the automatic flushing of the wiring harness between the valve combination and K&K water pump with time control and check valve, designed for flushing a maximum of 30 m DN 40. Control unit consisting of control module, waterproof welded 6V battery. Factory setting of the hygiene flush to a 12-hour cycle.
The valve combination should be connected by a specialist installation company.

Water reservoir
footprint: Ø 0.86 m
Welded stainless steel construction with 1 water drain pipe. Rubber cone closure with lock for complete water removal. Sheet thickness: min. 2 mm / tube Ø 38 mm. Connection to posts.

Y-gutter
Y-shaped water gutter with one inlet area and two outlets, sheet thickness: min. 2 mm / tube Ø 38 mm.
Includes 2 storage flaps, freely positionable, stainless steel handle, rubber blade with fabric insert.

Water channel 0.80 m, 2 pieces
. Welded stainless steel construction. Sheet thickness: min. 2 mm / tube Ø 38 mm. Slanted spout.
Stepless inclination for installation for the required gradient for the inflow and outflow of water through additional elevation.

Water channel 1.60 m
Welded stainless steel construction. Sheet thickness: min. 2 mm / tube Ø 38 mm. Slanted spout.
Stepless inclination for installation for the required gradient for the inflow and outflow of water through additional elevation.
Includes storage flap, freely positionable, stainless steel handle, rubber blade with fabric insert.

Water distribution table (0.75) Item No. 0-33481-000
Total height: 0.90 m
Welded stainless steel construction with 2 water drain pipes. Rubber cone closure with lock for complete water removal. Sheet thickness: min. 2 mm / tube Ø 38 mm. A suitable ring foundation (15166) for anchoring to the flange ring and shaped stones (15167) for building up and compensating for height differences or for secure foundations in loose fall protection (sand, fine gravel, etc.) can be supplied for an additional charge.

Solitary conveyor basin
Welded stainless steel construction with mounting device for the foot bearing of the water spiral. Water inlet directly below or above the pipe ring. Sheet thickness: min. 2 mm / tube Ø 38 mm. Water drain opening closed by cylinder screw. A suitable ring foundation (15168) for anchoring to the flange ring and shaped stones (15169) for building up and compensating for height differences or for secure foundations in loose fall protection (sand, fine gravel, etc.) can be supplied for an additional charge.

Water spiral (2.00) Hand wheel drive and turntable on top
Spiral length: 2.00 m
Outer diameter: 0.25 m
Welded stainless steel construction with roller bearings, foot bearing for screwing on.

Modular collecting basin
Welded stainless steel construction for water absorption with drain pipe. Sheet thickness: min. 2 mm / tube Ø 38 mm. For connection to posts.

Water trough type 1.60 m / water wheel 0.60 m
Welded stainless steel construction with elevation and water trough. Sheet thickness: min. 2 mm. Water wheel consisting of 12 blades, bevelled on the front side and enclosed by side walls. Wheel bearing with maintenance-free roller bearings.

Metal components: stainless steel. The robinia wood is treated with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts transmit their forces directly into the support posts via a special adapter fastening. The screw connections are secured against unauthorized loosening by cover caps.

Foundations (on site)
21 pieces. 0.40 x 0.40 x 0.40 m
6 pieces. 0.50 x 0.50 x 0.50 m
