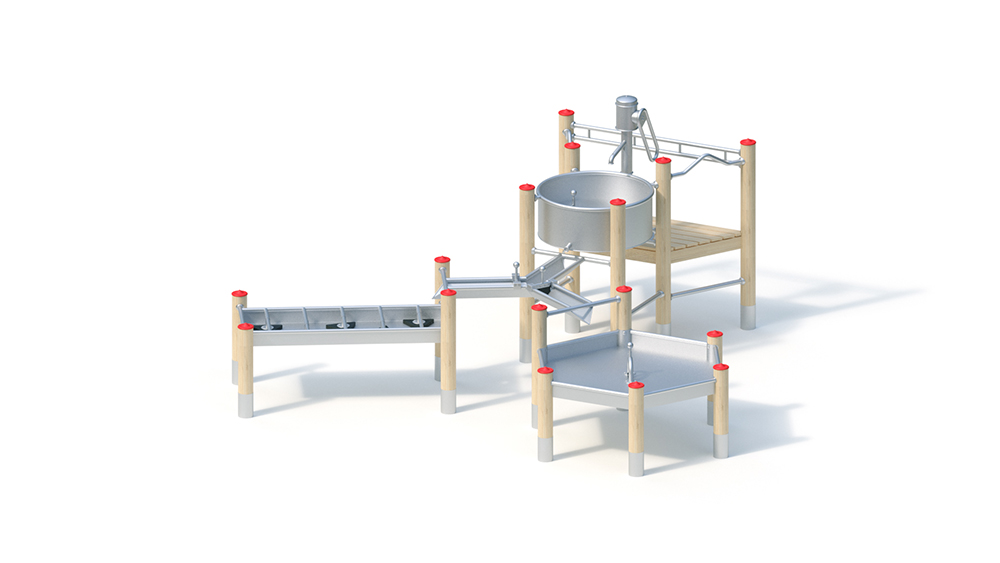

Water play area

Key Attributes

Age Group


Area of Use

Public Playgrounds



Suitable for

Suitable for
children from 4 years,
public playgrounds etc.,
manual activities

Techincal Specifications

Lifting Device


Total Length

4.35 m

Total Width

3.85 m

Total Height

2.00 m

Minimum Space Length

7.35 m

Minimum Space Width

6.85 m

Minimum Space Height

2.00 m

Heaviest Single Piece

80.00 kg

(Total) Weight

580.00 kg

Free Height of Fall

1.15 m

Platform Heights

0.80 m


Foundation 1

16 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 2


Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

3 h

Assembly Details

Installation time 2 fitters 3 hours each (without creating the foundation, without water connection)

Technical Data

Technical data
Total height: approx. 2.00 m
Area: approx. 3.85 x 4.35 m
Minimum space: approx . 6.85 x 7.35 m (39 m²)
Platform height: 0.80 m

post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Platform floors Platform floors
made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection. Pump platform also with profiled stainless steel sheet.

Attachment parts – U-railing, anti-roll-off, made of stainless steel tube, Ø 33.7 x 2 mm
– Tandem railing made of stainless steel tube, Ø 33.7 x 2 mm – Climbing rungs made of stainless steel tube
, Ø 38 x 2.5 mm

K&K water pump Article No. 0-33130-001 Suction
pipe connection 1 ¼ inch (pipe diameter at least ¾ inch), welded stainless steel construction, encapsulated pump housing, pump mechanics with roller and slide bearings, upper pump housing with handle must be removed e.g. during the frosty season, sealing cover

Please note:
When connecting the water pump to a pressurized water line, the K&K valve combination (Art.No. 0-33190-000) is required.

If the water supply is intended to be temporarily interrupted (timer or similar), a negative pressure builds up in the line system when the pump continues to be operated, which causes the pump handle to kick back.
It is therefore imperative to prevent actuation of the pump handle (for example by using the pump lock item number 1040639).

In doing so, also observe the general data specified in the assembly instructions (distances, diameter of the lines, etc.); You can get these on request from K&K or directly as a PDF from our website at www.kaiser-kuehne-play.com.

K&K water reservoir
base area: Ø 0.68 m
Welded stainless steel construction with a water drainage pipe. Rubber cone closure with lock for complete water withdrawal. Sheet thickness: min. 2 mm / tube Ø 33.7 mm.

K&K Y-gutter
Y-shaped water gutter with one inlet area and two outlets, sheet thickness: min. 2 mm / pipe Ø 38 mm.
Including 2 pieces of storage flap, freely positionable, handle made of stainless steel, sheet made of rubber with fabric insert.

K&K whirling table 0.80 mx 1.60 m
Welded stainless steel construction with 5 pieces. adjustable HPL prisms as flow obstacles. Sheet thickness at least 2 mm, pipe Ø 33.7 mm or Ø 30 mm.

K&K Maxitisch 6 x 0.80 m with water valve
Base: 1.40 x 1.70 m
Height: 0.80 m
Hexagonal stainless steel construction with lockable rubber cone lock for damming, regulating or diverting water. Sheet thickness: min. 2 mm.

Metal components: stainless steel.
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
16 pcs. 0.40 x 0.40 x 0.40 m
Amount of concrete: 1 m³

Free fall height
1.15 m
