Water play area
Key Attributes
Age Group
2+
Area of Use
Public Playgrounds
Activity
Manual
Suitable for
Suitable for
children from 2 years old,
public playgrounds etc.,
manual activities
Techincal Specifications
Lifting Device
-
Total Length
3.15 m
Total Width
1.85 m
Total Height
1.25 m
Minimum Space Length
6.15 m
Minimum Space Width
4.85 m
Minimum Space Height
1.25 m
Heaviest Single Piece
85.00 kg
(Total) Weight
105.00 kg
Free Height of Fall
0.25 m
Platform Heights
-
Foundations
Foundation 1
2 pieces - 0.50 x 0.50 x 0.50 m volume: 0.13 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
1 h
Assembly Details
Installation time 2 fitters each 0.5 hours (without foundation creation, without water connection)
Technical Data
Technical data
Total height: approx. 1.25 m
Base area: approx. 1.85 x 3.15 m
Minimum space: approx . 4.85 x 6.15 m (24 m²)
Weight: 85 kg heaviest individual part
240 kg in total

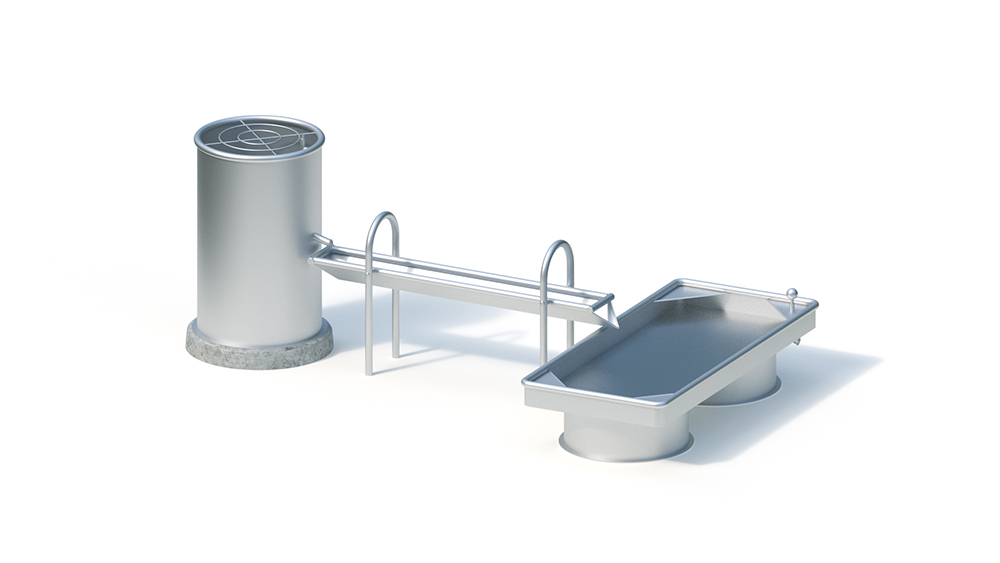

K&K water reservoir with 1 drainage pipe Article No. 0-33410-000
Base: Ø 0.68 m
Height: 1.04 m
Water content : 140 l
– Welded stainless steel construction with 1 water drainage
pipe
– Safety cover grille – Rubber cone lock with locking mechanism for complete water withdrawal
– Sheet thickness: min. 2 mm / tube Ø 38 mm
– anchoring on the flange ring
Matching shaped stones (15170) for bricking up and leveling differences in height or for a secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an additional cost.
K&K ring foundation Article No. 15165
Size: Ø 0.76 / 0.45 x 0.10 m
Weight: 64 kg
Foundation made of concrete, edges rounded; 4 threaded dowels, suitable as a concrete base for K&K water reservoir Article No. 0-33410-000.
K&K water channel S1 1.60 m
welded stainless steel construction. Sheet thickness: min. 2 mm / tube Ø 38 mm. Stepless incline for installation for the required gradient for the inlet and outlet of the water through additional elevation
K&K water table (0.25) Article No. 0-33445-000
Base: 0.84 x 1.84 m
Total height: 0.40 m
Welded stainless steel construction with 1 water drainage pipe. Rubber cone closure with lock for complete water withdrawal. 4 shelves. Sheet thickness: min 2 mm / tube Ø 38 mm. Anchoring on the flange ring.
A suitable ring foundation (15165) for anchoring on the flange ring and shaped stones (15170) for building up walls and leveling differences in height or for a secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an additional cost.
Metal components: stainless steel.
Foundations (on site)
2 pcs. 0.50 x 0.50 x 0.50 m
amount of concrete: 0.25 m³
Free height of fall
0.25 m
