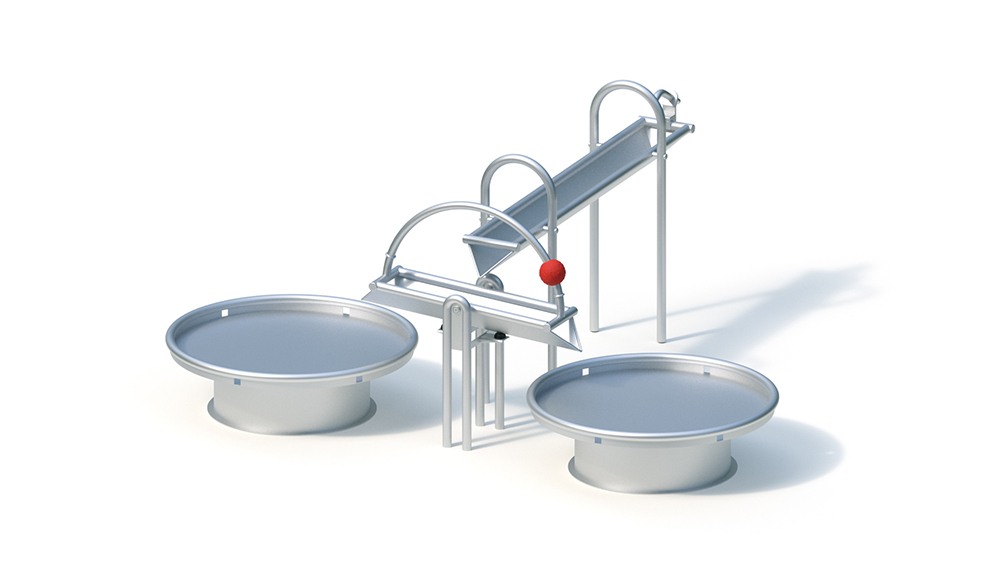

Water play area

2+

Public Playgrounds

Manual

Suitable for
children from 2 years,
supervised playgrounds etc.,
manual activities

-

2.70 m

2.40 m

1.05 m

5.70 m

5.40 m

1.05 m

40.00 kg

145.00 kg

0.25 m

-

2 pieces - 0.50 x 0.50 x 0.50 m volume: 0.13 m3

1 pieces - 0.70 x 0.50 x 0.50 m volume: 0.18 m3

-

-

-

-

2 pers.

1 h

Installation time 2 fitters 1 hour each (without creating the foundation, without water connection)

Technical data
Total height: 1.05 m
Base area: 2.40 x 2.70 m
Minimum space: 5.30 x 5.70 m (21 m²)
Weight: 40 kg, heaviest single part
145 kg in total

K&K Gargoyle Article No. 0-33125-000
Welded stainless steel construction, clamping part for attaching to pipe Ø 38 mm, with connection element. Suitable for connecting a garden hose with a 1/2 ″ or 3/4 ″ hose. (e.g. Gardena® or comparable).

K&K water channel S1 1.60 m
welded stainless steel construction. Sheet thickness: min. 2 mm / pipe Ø 38 mm, stepless inclination for installation for the required gradient for the inlet and outlet of the water through additional elevation.

K&K distribution channel Article No. 0-33493-000
Base: 0.35 x 1.05 m
Welded stainless steel construction with adjustable, shock-absorbing tilting mechanism for two-way water distribution, sheet thickness min. 2 mm / pipe Ø 38 mm, with elevation and water gutter with edge protection pipe Ø 38 x 2 mm.

K&K mud plate (0.25) Article No. 0-33450-000, two pieces
Base: Ø 1.04 m
Total height: 0.32 m
Welded stainless steel construction with 6 water drainage openings. Sheet thickness: min 2 mm / tube Ø 38 mm. Anchoring on the flange ring.
A suitable ring foundation (15165) for anchoring on the flange ring and shaped stones (15170) for building up walls and leveling differences in height or for a secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an additional cost.

Metal components: stainless steel.

Foundations (on site)
2 pcs. 0.50 x 0.50 x 0.50 m
1 pc. 0.50 x 0.70 x 0.50 m
amount of concrete: 0.43 m³

Free height of fall
0.25 m
