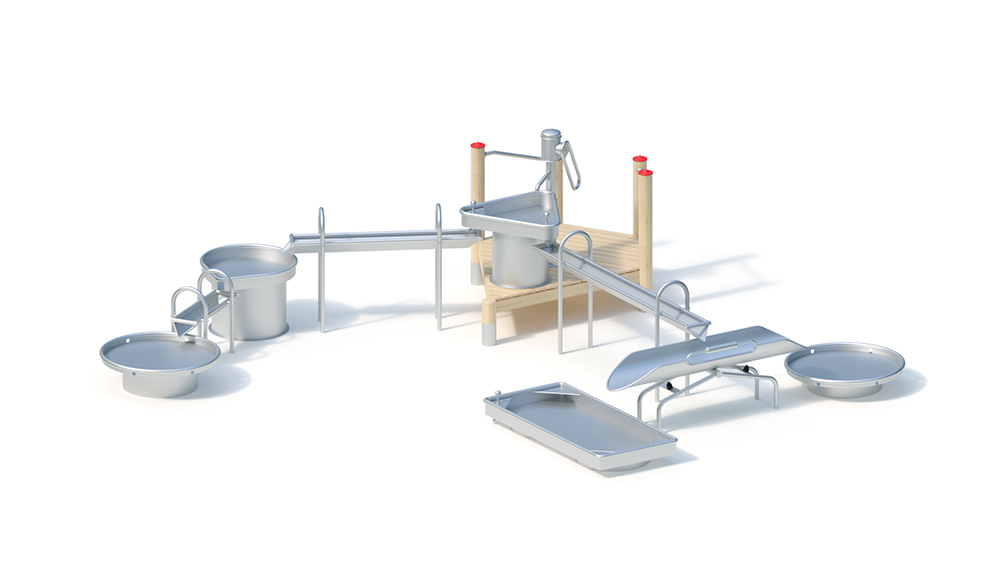

Water play area

4+

Public Playgrounds

Manual

Suitable for
children from 4 years,
public playgrounds etc.,
manual activities

-

6.30 m

4.95 m

1.60 m

9.30 m

7.95 m

1.60 m

85.00 kg

700.00 kg

0.90 m

0.40 m

5 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

2 pieces - 0.50 x 0.50 x 0.40 m volume: 0.10 m3

6 pieces - 0.50 x 0.50 x 0.50 m volume: 0.13 m3

-

-

-

2 pers.

3 h

Installation time 2 fitters 3 hours each (without creating the foundation, without water connection)

Technical data
Floor area: 4.95 x 6.30 m
Minimum space: 7.95 x 9.30 m (59 m²)
Total height: 1.60 m
Platform height: 0.40 m
Weight: 85 kg Heaviest individual part
700 kg in total

Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.
Support posts that are flush with the platform are not provided with post caps.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection. With profiled stainless steel sheet.

Attachments
– Step railing made of stainless steel tube, Ø 33.7 x 2 mm

K&K water pump Article No. 0-33130-001 Suction
pipe connection 1 ¼ inch (pipe diameter at least ¾ inch), welded stainless steel construction, encapsulated pump housing, pump mechanics with roller and slide bearings, upper pump housing with handle must be removed during the frosty season, sealing cover (“wintering plate “) For the remaining lower part of the pump is included.

Please note:
When connecting the water pump to a pressurized water line, the K&K valve combination (Art.No. 0-33190-000) is required.

If the water supply is intended to be temporarily interrupted (timer or similar), a negative pressure builds up in the line system when the pump continues to operate, which leads to the pump handle kicking back.
It is therefore imperative to prevent actuation of the pump handle (for example by using the pump lock item number 1040639).

In doing so, also observe the general data specified in the assembly instructions (distances, diameter of the lines, etc.); You can get these on request from K&K or directly as a PDF from our website at www.kaiser-kuehne-play.com.

K&K water distribution table (0.50) Article No. 0-33480-000
Welded stainless steel construction with 2 water drainage pipes . Rubber cone closure with lock for complete water withdrawal. Sheet thickness: min. 2 mm / tube Ø 38 mm.

K&K water gutter 1.60 m
welded stainless steel construction. Sheet thickness: min. 2 mm. Sloping spout.
Stepless inclination for installation for the required gradient for the inlet and outlet of the water through additional elevation

K&K water bowl (0.50) Article No. 0-33431-000
Base: 0.84 x 1.00 m
Weight: 55 kg in total
Welded stainless steel construction with 1 water drainage opening. Sheet thickness: min. 2 mm / tube Ø 38 mm. Anchoring on the flange ring.
A suitable ring foundation (15165) for anchoring on the flange ring and shaped stones (15170) for building up walls and leveling differences in height or for a secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an additional cost.

K&K water channel 0.80 m
Welded stainless steel construction. Sheet thickness: min. 2 mm. Sloping spout.
Stepless inclination for installation for the required gradient for the inlet and outlet of the water through additional elevation.

K&K mud plate (0.25) 2 pcs. Article No. 0-33450-000
Welded stainless steel construction with 6 water drainage openings . Sheet thickness: min. 2 mm / tube Ø 38 mm. Anchoring on the flange ring.
A suitable ring foundation (15165) for anchoring on the flange ring and shaped stones (15170) for building up walls and leveling differences in height or for a secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an additional cost.

K&K water gutter 2.40 m
welded stainless steel construction. Sheet thickness: min. 2 mm. Sloping spout.
Stepless incline for installation for the required gradient for the inlet and outlet of the water through additional elevation

K&K spirit level Article No. 0-33495-000
Base: 0.45 x 2.05 m
Weight: 55 kg in total
Welded stainless steel construction with adjustable, shock-absorbing tilting mechanism for two-way water distribution.
Sheet thickness: min: 2 mm,
tube: Ø 20 mm and Ø 38 mm

K&K water table (0.25) Article No. 0-33445-000
Base: 0.84 x 1.84 m
Weight: 85 kg in total
Welded stainless steel construction with 1 water drainage pipe. Rubber cone closure with lock for complete water withdrawal. 4 shelves. Sheet thickness: min. 2 mm / tube Ø 38 mm. Anchoring on the flange ring.
Matching ring foundations (15165) for anchoring on the flange ring and shaped stones (15170) for bricking up and leveling differences in height or for secure foundations in loose fall protection (sand, fine gravel, etc.) can be supplied at an additional cost.

Metal components: stainless steel.
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
5 pcs. 0.40 x 0.40 x 0.40 m
2 pieces. 0.50 x 0.50 x 0.40 m
6 pcs. 0.50 x 0.50 x 0.50 m
amount of concrete: 1.27 m³

Free fall height
0.90 m
