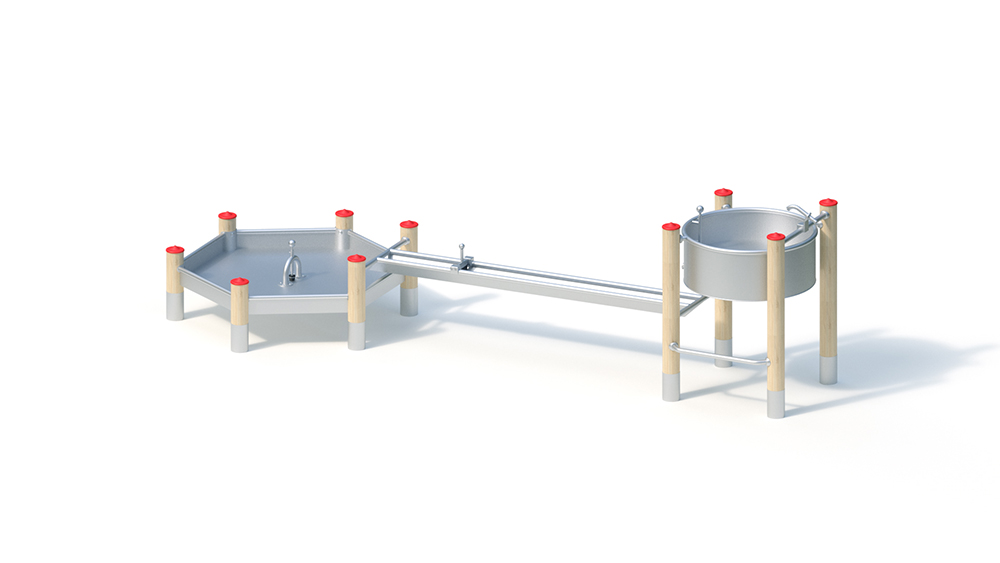

Water play area

Key Attributes

Age Group


Area of Use

Supervised Playgrounds



Suitable for

Suitable for
children from 2 years,
supervised playgrounds etc.,
manual activities

Techincal Specifications

Lifting Device


Total Length

4.75 m

Total Width

1.75 m

Total Height

1.40 m

Minimum Space Length

7.75 m

Minimum Space Width

4.75 m

Minimum Space Height

1.40 m

Heaviest Single Piece

80.00 kg

(Total) Weight

270.00 kg

Free Height of Fall

0.95 m

Platform Heights



Foundation 1

10 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 2


Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

2 h

Assembly Details

Installation time 2 fitters 2 hours each (without creating the foundation, without water connection)

Technical Data

Technical data
Total height: approx. 1.40 m
Base area: approx. 1.75 x 4.75 m
Minimum space: approx . 4.75 x 7.75 m (31 m²)
Weight: 80 kg heaviest individual part
270 kg in total

posts Support posts made of Robinia plywood, milled cylindrically, Ø 120 mm, covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Attachment parts – Holding tube made of stainless steel tube, Ø 38 x 2.5 mm, twist-proof – Climbing rung
(cranked) made of stainless steel tube , Ø 33.7 x 2 mm

K&K water reservoir with 1 drainage pipe
Base area: Ø 0.68 m
Welded stainless steel construction with a water drainage pipe . Rubber cone closure with lock for complete water withdrawal. Sheet thickness: min. 2 mm / tube Ø 38 mm.

K&K Gargoyle Article No. 0-33125-000
Welded stainless steel construction, clamp part for attachment to pipe Ø 38 mm, with connection element suitable for connecting a garden hose with hose section 1/2 ″ or 3/4 ″. (e.g. Gardena® or comparable).

K&K water channel M1 2.40 m
welded stainless steel construction. Sheet thickness: min. 2 mm / tube Ø 38 mm. For connection to support posts, with stepless inclination for installation for the required gradient for the inlet and outlet of the water.

K&K storage
flap Storage flap for K&K gutters, freely positionable, stainless steel handle, rubber sheet with fabric insert.

K&K Maxitisch 6 x 0.80 m with water valve Base
area: 1.40 x 1.70 m
Height: 0.80 m
Hexagonal stainless steel construction with lockable rubber cone lock for damming and regulating water. Sheet thickness: min. 2 mm.

Metal components: stainless steel.
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
10 pcs. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.64 m³

Free fall height
0.95 m
