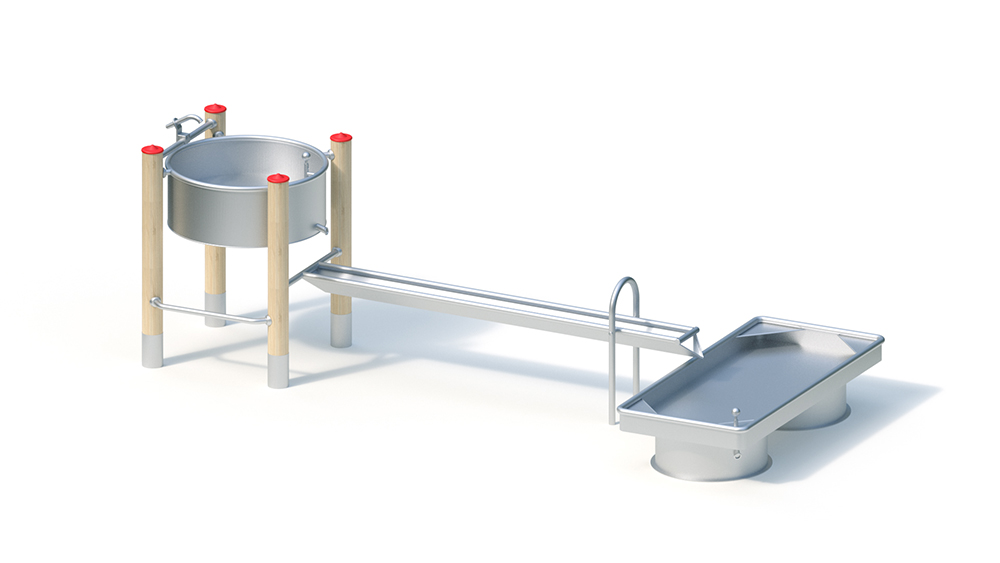

Water play area

Key Attributes

Age Group


Area of Use

Supervised Playgrounds



Suitable for

Suitable for
children from 2 years,
supervised playgrounds etc.,
manual activities

Techincal Specifications

Lifting Device


Total Length

4.15 m

Total Width

1.85 m

Total Height

1.40 m

Minimum Space Length

7.15 m

Minimum Space Width

4.85 m

Minimum Space Height

1.40 m

Heaviest Single Piece

85.00 kg

(Total) Weight

220.00 kg

Free Height of Fall

0.95 m

Platform Heights



Foundation 1

4 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 2

1 piece - 0.50 x 0.50 x 0.50 m volume: 0.13 m3

Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

1 h

Assembly Details

Installation time 2 fitters 1 hour each (without creating the foundation, without water connection)

Technical Data

Technical data
Total height: approx. 1.40 m
Base area: approx. 1.85 x 4.15 m
Minimum space: approx . 4.85 x 7.15 m (30 m²)
Weight: 85 kg heaviest individual part
220 kg in total

post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Attachment parts – Holding tube made of stainless steel tube, Ø 38 x 2.5 mm, twist-proof – Climbing rung
(cranked) made of stainless steel tube , Ø 33.7 x 2 mm

K&K Gargoyle Article No. 0-33125-000
Welded stainless steel construction, clamp part to attach to holding tube Ø 38 mm, with connection element suitable for the connection of a garden hose with hose section 1/2 ″ or 3/4 ″. (e.g. Gardena® or comparable).

K&K water reservoir with 1 drainage pipe
Base area: Ø 0.68 m
Welded stainless steel construction with a water drainage pipe . Rubber cone closure with lock for complete water withdrawal. Sheet thickness: min. 2 mm / tube Ø 38 mm.

K&K water channel M5 2.40 m
welded stainless steel construction. Sheet thickness: min. 2 mm / tube Ø 38 mm. With 1 connection to the post, stepless inclination for installation for the required gradient for the inlet and outlet of the water through additional elevation.

K&K water table (0.25) Article No. 0-33445-000
Base: 0.84 x 1.84 m
Total height: 0.40 m
Welded stainless steel construction with 1 water drainage pipe. Rubber cone closure with lock for complete water withdrawal. 4 shelves. Sheet thickness: min. 2 mm / tube Ø 38 mm. Anchoring on the flange ring.
A suitable ring foundation (15165) for anchoring on the flange ring and shaped stones (15170) for building up walls and leveling out differences in height or for a secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an additional cost.

Metal components: stainless steel.
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
4 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.50 x 0.50 x 0.50 m
amount of concrete: 0.38 m³

Free fall height
0.95 m
