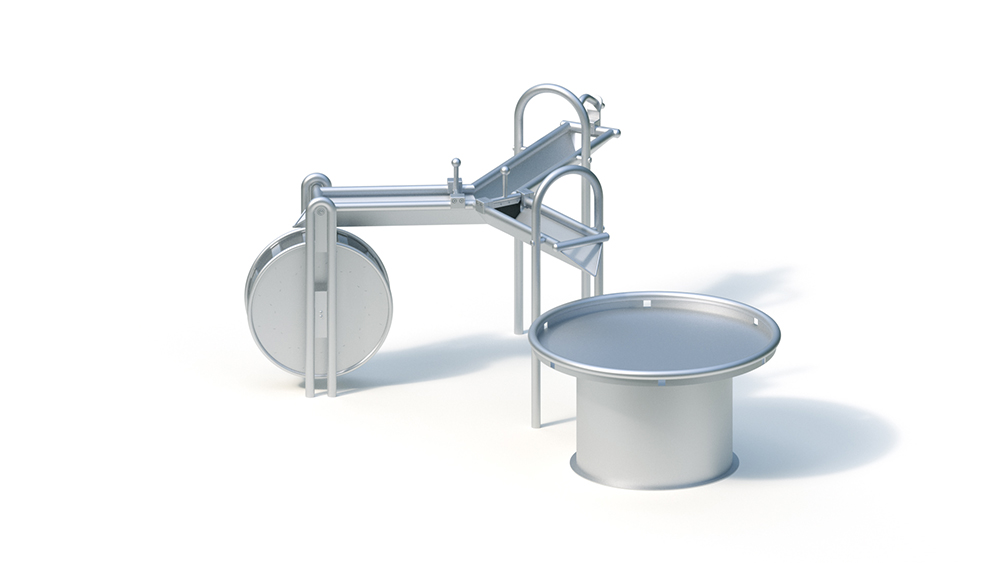

Water play area

Key Attributes

Age Group


Area of Use

Supervised Playgrounds



Suitable for

Suitable for
children from 2 years,
supervised playgrounds etc.,
manual activities

Techincal Specifications

Lifting Device


Total Length

2.50 m

Total Width

2.20 m

Total Height

1.10 m

Minimum Space Length

5.50 m

Minimum Space Width

5.20 m

Minimum Space Height

1.10 m

Heaviest Single Piece

50.00 kg

(Total) Weight

147.00 kg

Free Height of Fall

0.50 m

Platform Heights



Foundation 1

2 pieces - 0.50 x 0.50 x 0.50 m volume: 0.13 m3

Foundation 2

1 piece - 0.70 x 0.50 x 0.50 m volume: 0.18 m3

Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

1 h

Assembly Details

Installation time 2 fitters 1 hour each (without foundation creation, without water connection)

Technical Data

Technical data
Total height: 1.10 m
Base area: 2.50 x 2.20 m
Minimum space: 5.50 x 5.20 m (21 m²)
Weight: 50 kg heaviest individual part
147 kg in total

K&K Gargoyle Article No. 0-33125-000
Welded stainless steel construction, clamp part to attach to holding tube Ø 38 mm, with connection element suitable for the connection of a garden hose with hose section 1/2 ″ or 3/4 ″. (e.g. Gardena® or comparable).

K&K Y-gutter
Y-shaped water gutter with one inlet area and two outlets, sheet thickness: min. 2 mm / pipe Ø 38 mm

K&K storage flap, 2 pieces of
storage flap for K&K gutters, freely positionable, handle made of stainless steel, sheet made of rubber with fabric insert

K&K waterwheel Ø 0.60 m
waterwheel consisting of 12 blades, bevelled flat on the front side and enclosed by side walls. Wheel bearing with roller bearings, sheet metal thickness 2.5 mm, with elevation, pipe Ø 38 mm, prepared for receiving the gully.

K&K mud plate (0.50) Article No. 0-33451-000
Welded stainless steel construction with 6 water drainage openings . Sheet thickness: at least 2 mm / pipe Ø 38 mm. Anchoring on the flange ring.
A suitable ring foundation (15165) for anchoring on the flange ring and shaped stones (15170) for building up walls and leveling differences in height or for a secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an additional cost.

Foundations (on site)
2 pcs. 0.50 x 0.50 x 0.50 m
1 pc. 0.50 x 0.70 x 0.50 m
amount of concrete: 0.43 m³

Free fall height
0.50 m
