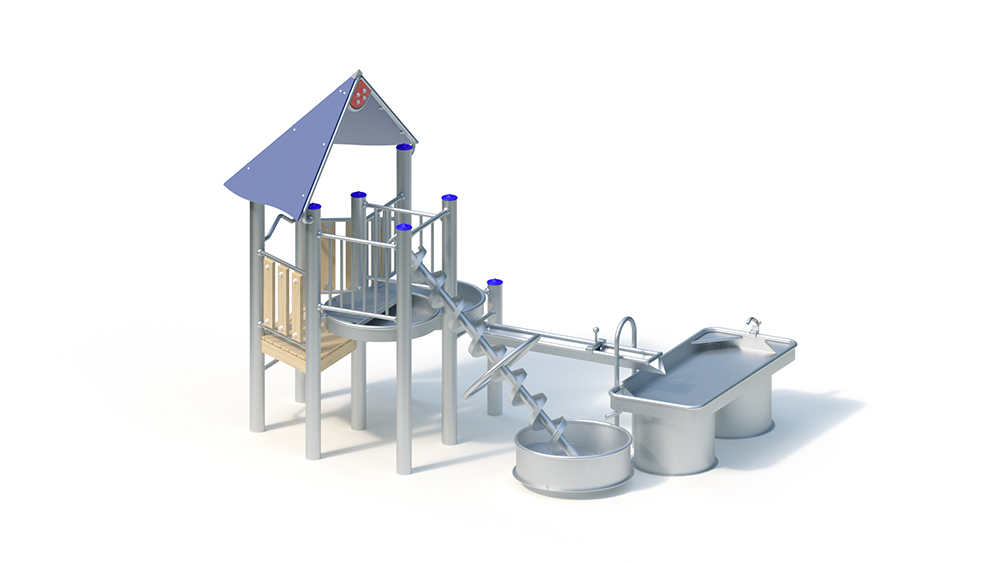

Water play area

2+

Supervised Playgrounds

Manual

Suitable for
children from 2 years,
supervised playgrounds etc.,
manual activities

-

3.95 m

2.80 m

3.00 m

6.95 m

6.00 m

3.00 m

105.00 kg

560.00 kg

1.20 m

0.80 m, 1.20 m

8 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

1 piece - 0.50 x 0.50 x 0.50 m volume: 0.13 m3

-

-

-

-

2 pers.

3 h

Installation time 2 fitters 3 hours each (without creating the foundation, without water connection)

Technical data
Floor area: 2.80 x 3.95 m
Minimum space: 6.00 x 6.95 m (34 m²)
Total height: 3.00 m
Platform height: 0.80 / 1.20 m
Weight: 105 kg Heaviest individual part
560 kg a total of

Support
posts Support posts made of stainless steel tube Ø 120 x 3 mm, covered with non-detachable post caps made of stainless steel.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.

Attachments
– Ironing railings, abrollverhindernd, stainless steel pipe, Ø 33.7 x 2 mm
– climbing rung (cranked) stainless steel tube, Ø 33.7 x 2 mm
– half tent roof, tilt 45 °, from highly weather-resistant HPL plate (blue), 13 mm, attachment to the roof frame made of stainless steel tube Ø 33.7 x 2 mm
– wood balustrade made of robinia, 125 x 30 mm, attachment between stainless steel tubes Ø 33.7 x 2 mm
– lattice balustrade made of stainless steel tube, Ø 33.7 x 2/25 x 2 mm , one-piece welded construction

K&K conveyor
basin, solitary, welded stainless steel construction with mounting device for the foot bearing of the water spiral, with drain hole. Sheet thickness 2 mm / pipe Ø 33.7 mm.
Suitable ring foundation (015168) for anchoring on the flange ring and shaped stones (015169) for building up walls and leveling out differences in height or for a secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an additional cost.

K&K catch basin modular
Welded stainless steel construction for water intake with a water drainage opening, sheet thickness 2 mm / pipe Ø 33.7 mm, for connection to posts.

K&K water spiral Handwheel drive
Length: 2.00 m Outer
diameter: 0.25 m
Handwheel Ø: 0.80 m
Welded stainless steel construction with roller bearings, foot bearing for screwing on, connection to post.

K&K water table (0.50)
Base: 0.84 x 1.84 m
Total height: 0.65 m
Welded stainless steel construction with 1 water drainage pipe. Rubber cone closure with lock for complete water withdrawal. 4 shelves. Sheet thickness: 2 mm / tube Ø 38 mm. Anchoring on the flange ring.
Matching ring foundations (015165) for anchoring on the flange ring and shaped stones (015170) for walling up and leveling out differences in height can be supplied at an extra charge.

K&K Gargoyle
Welded stainless steel construction, clamp part to attach to pipe Ø 38 mm, with connection for a garden hose with hose section 1/2 ″ or 3/4 ″. (e.g. Gardena® or comparable).

K&K water channel M5 1.60 m
welded stainless steel construction. Sheet thickness: 2 mm / tube Ø 38 mm. With connection to support posts and additional elevation for stepless inclination of the channel. Sloping spout. Including positionable storage flap, handle made of stainless steel, sheet made of rubber with fabric insert.

K&K terrace shell with 1 drain
Base area: Ø 0.90 m
Total height: 0.14 m
Welded stainless steel construction with water drainage opening, sheet thickness: 2 mm / pipe Ø 33.7 mm, connection to posts.

Foundations (on site)
8 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.50 x 0.50 x 0.50 m
amount of concrete: 0.7 m³
