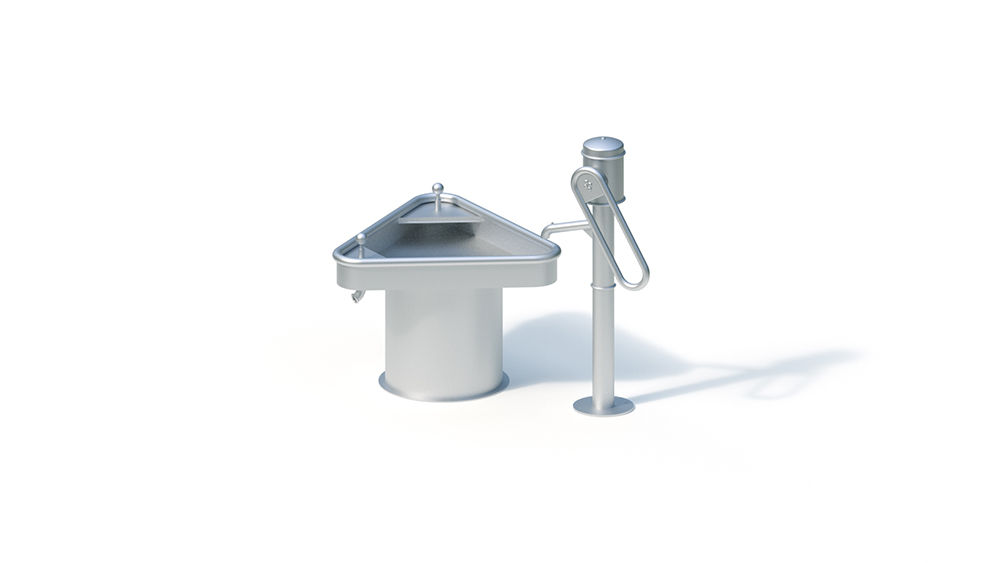

Water play area

Key Attributes

Age Group


Area of Use

Public Playgrounds



Suitable for

Suitable for
children from 4 years old
public playgrounds etc.
manual activities

Techincal Specifications

Lifting Device


Total Length

1.35 m

Total Width

0.95 m

Total Height

1.17 m

Minimum Space Length

4.35 m

Minimum Space Width

3.95 m

Minimum Space Height

1.17 m

Heaviest Single Piece

55.00 kg

(Total) Weight

105.00 kg

Free Height of Fall

0.50 m

Platform Heights



Foundation 1

1 piece - 0.50 x 0.50 x 0.50 m volume: 0.13 m3

Foundation 2


Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

1 h

Assembly Details

Installation time 2 fitters 1 hour each (without foundation creation, without water connection)

Technical Data

Technical data
Total height: approx. 1.17 m
Base area: approx. 0.95 x 1.35 m
Minimum space: approx . 3.95 x 4.35 m (14 m²)
Weight: 55 kg heaviest individual part
105 kg in total

K&K water pump Article No. 0-33130-001
Height: 1.17 m
Water pump for direct connection to a water pipe, suction pipe connection 1 ¼ inch (pipe diameter at least ¾ inch).
Welded stainless steel construction, encapsulated pump housing, pump mechanics with roller and slide bearings, upper pump housing with handle must be removed, for example, during the frosty period, sealing cover (“wintering plate”) for the remaining lower part of the pump is included.

Please note:
When connecting the water pump to a pressurized water line, the K&K valve combination (Art.No. 0-33190-000) is required.

If the water supply is intended to be temporarily interrupted (timer or similar), a negative pressure builds up in the line system when the pump continues to operate, which leads to the pump handle kicking back.
It is therefore imperative to prevent actuation of the pump handle (for example by using the pump lock item number 1040639).

In doing so, also observe the general data specified in the assembly instructions (distances, diameter of the lines, etc.); You can get these on request from K&K or directly as a PDF from our website

Flange pipe Article No. 1040065 Flange pipe
for screwing to K&K water pump.
For setting in concrete below the playing level.

K & K water distribution table (0,50) products Nr.0-33480-000
Area: 0.85 x 0.94 m
Total height: 0.65 m
welded stainless steel construction with 2 water drain pipes. Rubber cone closure with lock for complete water withdrawal. Sheet thickness min. 2 mm / tube Ø 38 mm.
A suitable ring foundation (15166) for anchoring on the flange ring and shaped stones (15167) for building walls and leveling differences in height or for a secure foundation in loose fall protection (sand, fine gravel, etc.) can be supplied at an additional cost.

Foundations (on site)
1 pc. 0.50 x 0.50 x 0.50 m
amount of concrete: 0.13 m³

Free fall height
0.50 m
