Water play area

2+

Supervised Playgrounds

Manual

Suitable for
children from 2 years,
supervised playgrounds etc.,
manual activities

-

5.00 m

3.60 m

1.70 m

8.00 m

6.60 m

1.70 m

60.00 kg

405.00 kg

1.25 m

-

12 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

-

-

-

-

-

2 pers.

3 h

Assembly time 2 fitters each 3 hours (without foundation creation, without water connection)

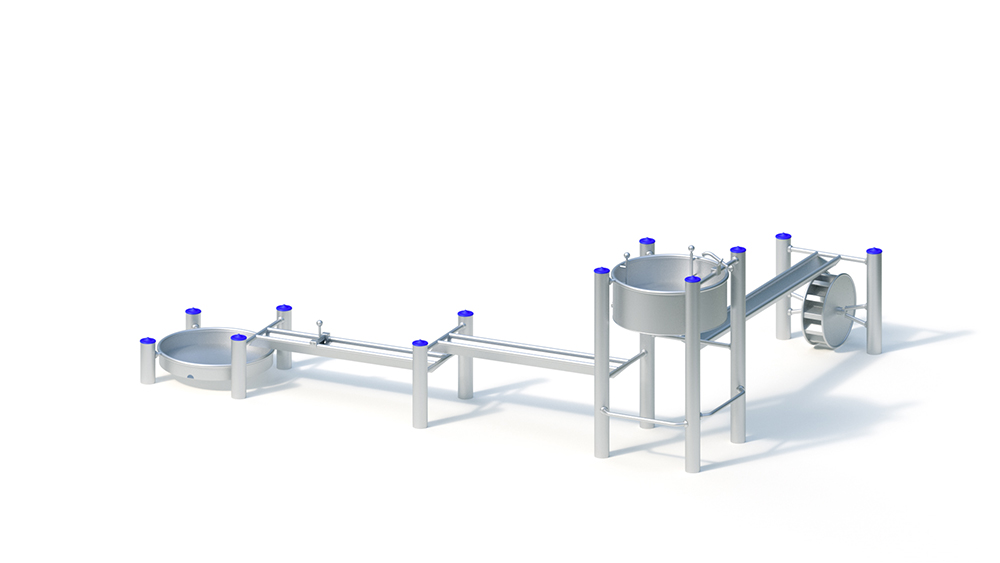

Technical data
Total height: approx. 1.70 m
Base: approx. 3.60 x 5.00 m
Minimum space: approx . 6.60 x 8.00 m (39 m²)
Weight: 60 kg, heaviest individual part,
405 kg in total

Support
posts Support posts made of stainless steel Ø 120 x 3 mm, covered with non- removable post caps made of stainless steel.

Attachments
– holding tube made of stainless steel, diameter 38 x 2.5 mm, torsion-
– (cranked) climbing rungs made of stainless steel, diameter 33.7 mm x 2

K&K Gargoyle Article No. 0-33125-000
Welded stainless steel construction, clamp part for attachment to pipe Ø 38 mm, with connection element suitable for connecting a garden hose with hose section 1/2 ″ or 3/4 ″. (e.g. Gardena® or comparable).

K&K water reservoir
base area: Ø 0.68 m
Welded stainless steel construction with 2 water drainage pipes. Rubber cone closure with lock for complete water withdrawal. Sheet thickness: min. 2 mm / tube Ø 33.7 mm. Connection to post.

K&K water channel M1 2.40 m
welded stainless steel construction. Sheet thickness: min. 2 mm / tube Ø 38 mm. For connection to support posts, with stepless inclination for installation for the required gradient for the inlet and outlet of the water.

K&K waterwheel Ø 0.60 m
Welded stainless steel construction, 12 blades, flat beveled at the front and enclosed by side walls. Sheet thickness at least 2 mm. Wheel bearings with roller bearings.

K&K water gutter M1 1.60 m, 2 pieces
welded stainless steel construction. Sheet thickness: min. 2 mm / tube Ø 38 mm. For connection to support posts, with stepless inclination for installation for the required gradient for the inlet and outlet of the water.

K&K storage
flap Storage flap for K&K gutters, freely positionable, stainless steel handle, rubber sheet with fabric insert.

K&K terrace shell with 1 drain
Base area: Ø 0.90 m
Total height: 0.14 m
Welded stainless steel construction with water drainage opening. Sheet thickness: min. 2 mm / tube Ø 38 mm. Anchoring through post connection.

Metal components: stainless steel. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.

Foundations
12 pcs. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.8 m³

Free fall height
1.25 m
