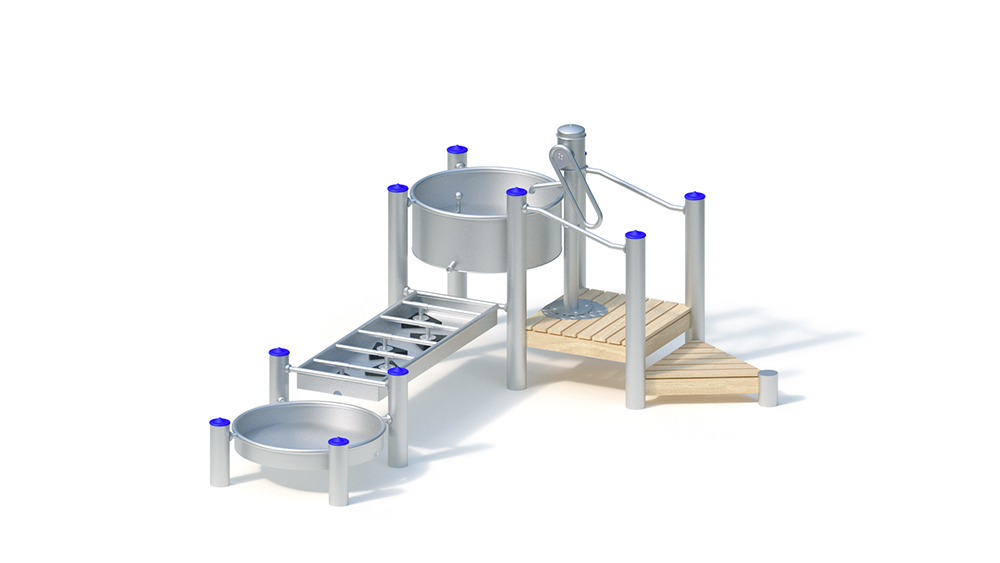

Water play area

Key Attributes

Age Group


Area of Use

Public Playgrounds



Suitable for

Suitable for
children from 4 years,
public playgrounds etc.,
manual activities

Techincal Specifications

Lifting Device


Total Length

3.35 m

Total Width

2.40 m

Total Height

1.60 m

Minimum Space Length

6.35 m

Minimum Space Width

5.40 m

Minimum Space Height

1.60 m

Heaviest Single Piece

60.00 kg

(Total) Weight

360.00 kg

Free Height of Fall

0.85 m

Platform Heights

0.20 m, 0.40 m


Foundation 1

11 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

Foundation 2


Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

2 h

Assembly Details

Installation time 2 fitters 2 hours each (without creating the foundation, without water connection)

Technical Data

Technical data
Floor area: 2.40 x 3.35 m
Minimum space: 5.40 x 6.35 m (28 m²)
Total height: 1.60 m
Platform heights: 0.20 / 0.40 m

posts Support posts made of stainless steel tube Ø 120 mm, covered with non-detachable post caps made of stainless steel.
The post that is flush with the platform is covered with welded circular blanks made of stainless steel.

Platform floors Platform floors
made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.
Pump platform also with profiled stainless steel sheet.

– Step railing 0.80 mx 0.15 m, made of stainless steel tube, Ø 33.7 x 2 mm
– Rung 0.80 m, Ø 38 x 2.5 mm

K&K water pump Article No. 0-33130-001 Suction
pipe connection 1 ¼ inch (pipe diameter at least ¾ inch), welded stainless steel construction, encapsulated pump housing, pump mechanics with roller and slide bearings, upper pump housing with handle must be removed e.g. during the frosty season, sealing cover (” Wintering plate “) for the remaining lower part of the pump is included.

Please note:
When connecting the water pump to a pressurized water line, the K&K valve combination (Art.No. 0-33190-000) is required.

If the water supply is intended to be temporarily interrupted (timer or similar), a negative pressure builds up in the line system when the pump continues to operate, which leads to the pump handle kicking back.
It is therefore imperative to prevent actuation of the pump handle (for example by using the pump lock item number 1040639).

In doing so, also observe the general data specified in the assembly instructions (distances, diameter of the lines, etc.); You can get these on request from K&K or directly as a PDF from our website at www.kaiser-kuehne-play.com.

K&K water reservoir with 1 drainage pipe
Base area: Ø 0.68 m
Welded stainless steel construction with a water drainage pipe . Rubber cone closure with lock for complete water withdrawal. Sheet thickness: min. 2 mm / tube Ø 38 mm.

Whirling table 0.80 mx 1.60 m
Welded stainless steel construction with 5 pieces. adjustable HPL prisms as flow obstacles. Sheet thickness: min. 2 mm, pipe Ø 33.7 mm or Ø 30 mm

K&K terrace shell with 1 drain
Base area: Ø 0.90 m
Total height: 0.14 m
Welded stainless steel construction with water drainage opening. Sheet thickness: min. 2 mm / tube Ø 38 mm. Anchoring through post connection.

Metal components: stainless steel.
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.

Foundations (on site)
11 pcs. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.70 m³

Free fall height
0.73 m
