0-57062-002

Wall bars and pull-up trainers (0.80 m)

Key Attributes

Age Group

18+

Area of Use

Trim Paths

Activity

Sport

Suitable for

Suitable for
adult
trim trails etc.
sporting activities

Techincal Specifications

Lifting Device

-

Total Length

2.95 m

Total Width

0.15 m

Total Height

2.30 m

Minimum Space Length

5.95 m

Minimum Space Width

4.10 m

Minimum Space Height

2.30 m

Heaviest Single Piece

35.00 kg

(Total) Weight

105.00 kg

Free Height of Fall

2.30 m

Platform Heights

-

Foundations

Foundation 1

2 pieces - 1.40 x 0.50 x 0.60 m volume: 0.42 m3

Foundation 2

1 piece - 1.00 x 0.30 x 0.30 m volume: 0.90 m3

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

1 h

Assembly Details

Assembly time 2 fitters 1 hour each (without foundation creation)

Technical Data

#Technical data
Base area: 0.15 x 2.95 m
Minimum space: 4.10 x 5.95 m Rung spacing
: 0.40 m
Total height: 2.30 m
Weight: 35 kg Heaviest individual part
105 kg in total

Post: steel tube Ø 121 x 4 mm, hot-dip galvanized, powder-coated.

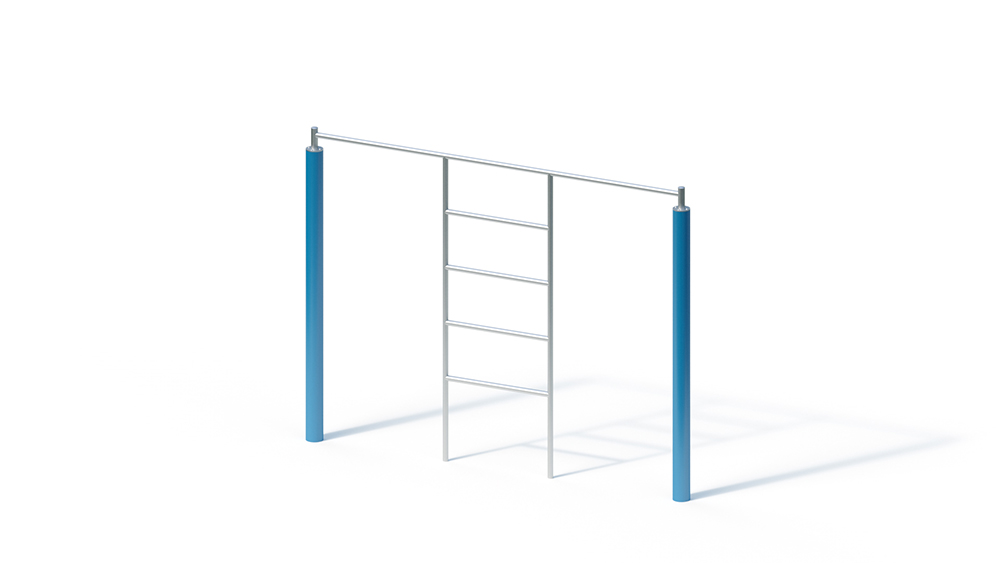

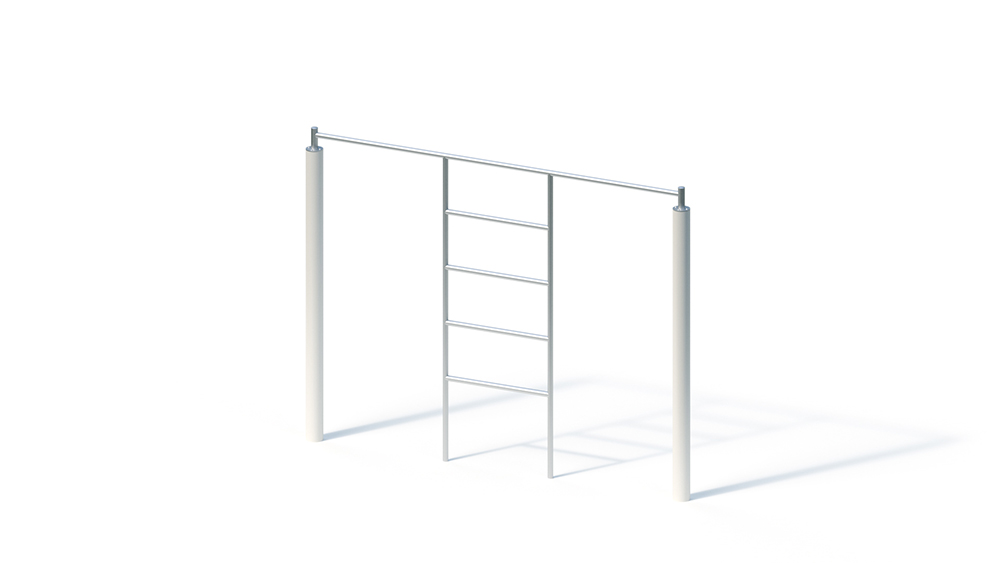

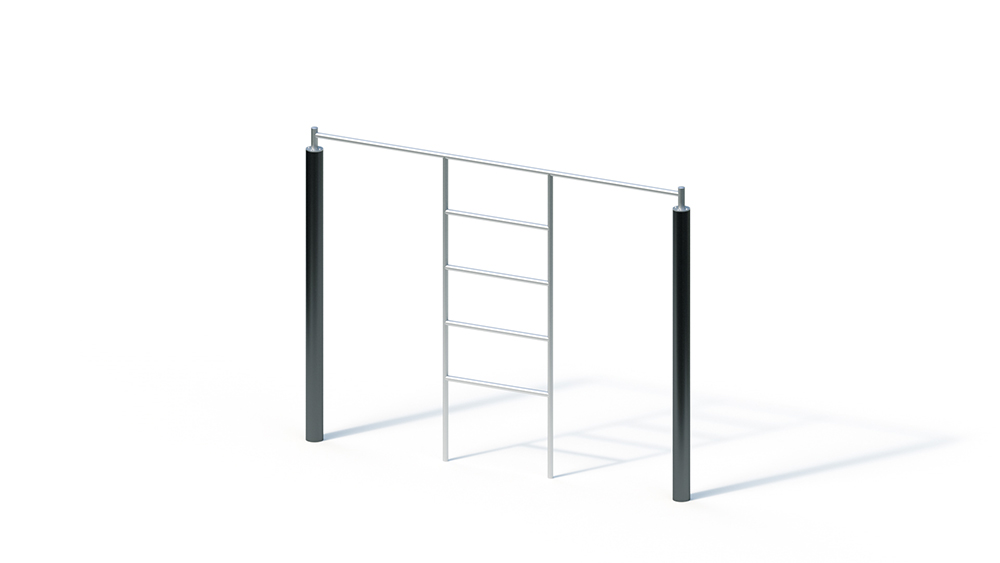

Post color optionally: red / RAL 2002, blue / RAL 5015, white / RAL 9010 and black / RAL 9005. Metal components
: Stainless steel
station signs (see item no. 0-57406-000 and 0-57407-000) can be supplied at an extra charge become.

Foundations (on site)
1 pc. 1.00 x 0.30 x 0.30 m
2 pcs. 1.40 x 0.50 x 0.60 m

Free fall
2.30 m
