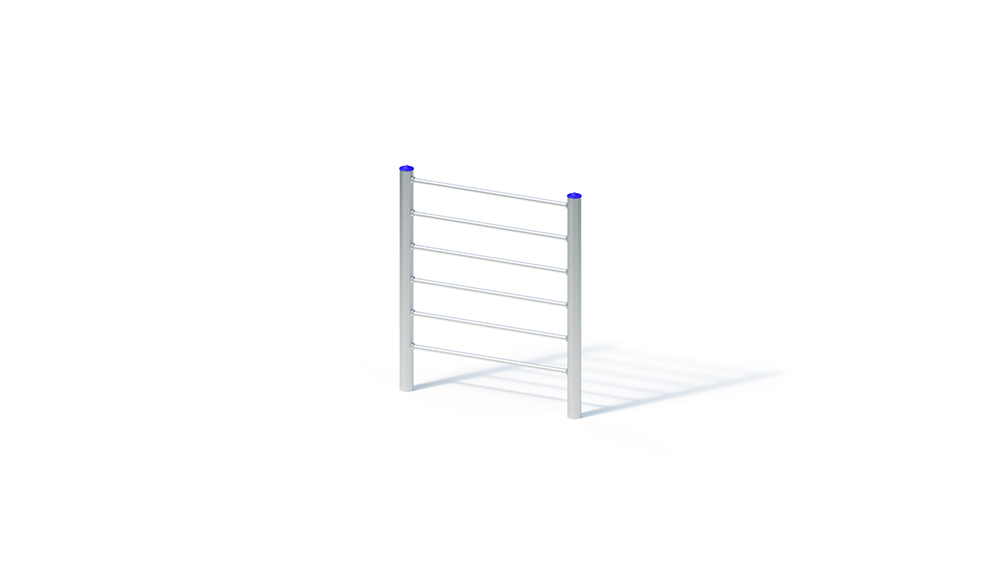

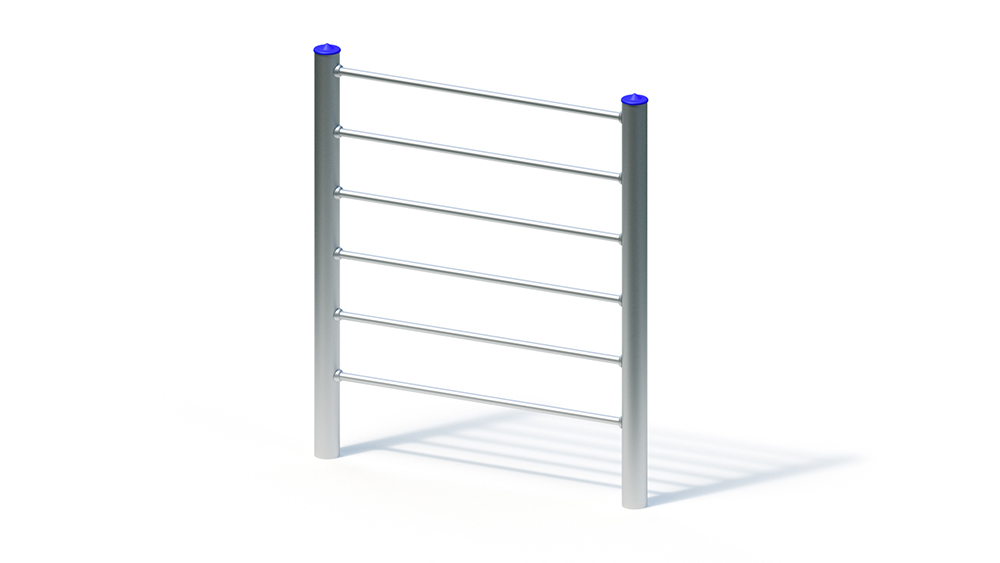

Wall bars
Key Attributes
Age Group
5+
Area of Use
Public Playgrounds
Activity
Climb
Suitable for
Suitable for
children from 5 years,
public playgrounds etc.,
sporting activities.
Techincal Specifications
Lifting Device
-
Total Length
1.75 m
Total Width
0.12 m
Total Height
2.05 m
Minimum Space Length
5.30 m
Minimum Space Width
3.70 m
Minimum Space Height
2.05 m
Heaviest Single Piece
25.00 kg
(Total) Weight
70.00 kg
Free Height of Fall
1.92 m
Platform Heights
-
Foundations
Foundation 1
2 pieces - 0.50 x 0.50 x 0.60 m volume: 0.15 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
1 h
Assembly Details
Assembly time 2 fitters each 0.5 hours (without foundation creation)
Technical Data
Technical data
Length: 1.75 m
Minimum space: 3.70 x 5.30 m (17 m²)
Total height: 2.05 m
Height of wall bars: 1.90 m
Weight: 25 kg Heaviest individual part
70 kg in total
Support
posts Support posts made of stainless steel tube Ø 120 mm, wall thickness 2.5 mm, covered with non-detachable post caps made of stainless steel.
Attachments
climbing rungs made of stainless steel tube, Ø 38 mm, wall thickness 2.5 mm, twist-proof
Metal
components : stainless steel 1.4301 The modular add-on parts transfer their forces directly into the support posts via a special adapter attachment.
The screw connections are secured against unauthorized loosening.
Foundations (on site)
2 pcs. 0.50 x 0.50 x 0.60 m
amount of concrete: 0.30 m³
Free fall height
1.92 m
