Wall bars

Key Attributes

Age Group

5+

Area of Use

Public Playgrounds

Activity

Climb

Suitable for

Suitable for
children from 5 years,
public playgrounds etc.,
sporting activities

Techincal Specifications

Lifting Device

-

Total Length

1.71 m

Total Width

0.12 m

Total Height

2.01 m

Minimum Space Length

5.30 m

Minimum Space Width

3.70 m

Minimum Space Height

2.05 m

Heaviest Single Piece

25.00 kg

(Total) Weight

70.00 kg

Free Height of Fall

1.92 m

Platform Heights

-

Foundations

Foundation 1

4 pieces - 0.50 x 0.50 x 0.60 m volume: 0.15 m3

Foundation 2

-

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

1 h

Assembly Details

Assembly time 2 fitters each 0.5 hours (without foundation creation)

Technical Data

TECHNICAL DRAWING (3D)
Technical data
Equipment room: 1.71 x 0.11 x 2.01 m
Minimum space: 5.28 x 3.68 x 2.01 m
Impact area: 17 m²
Total height: 2.01 m

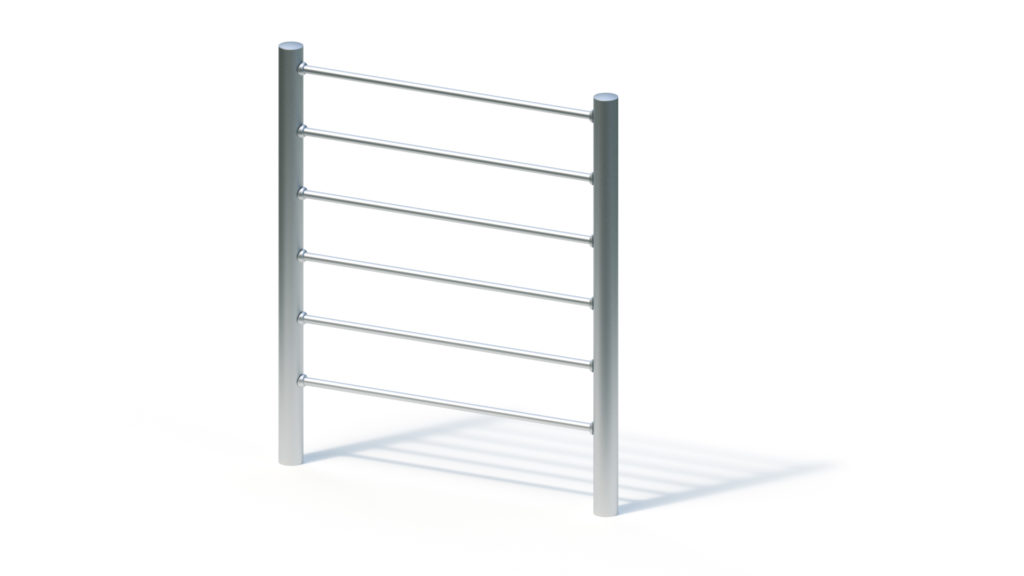

Wall bars
height: 1.90 m Free fall height: 1 , 92 m
Weight: 25 kg heaviest single part
70 kg in total

Support
posts Support posts made of stainless steel tube Ø 114.3 mm, wall thickness 3 mm, covered with welded caps made of stainless steel.

Attachments
climbing rungs made of stainless steel tube, Ø 38 mm, wall thickness 2.5 mm, twist-proof

Metal
components : stainless steel 1.4301 The modular add-on parts transfer their forces directly into the support posts via a special adapter attachment.
The screw connections are secured against unauthorized loosening.

Foundations (on site)
4 pcs. 0.50 x 0.50 x 0.60 m
amount of concrete: 0.30 m³
