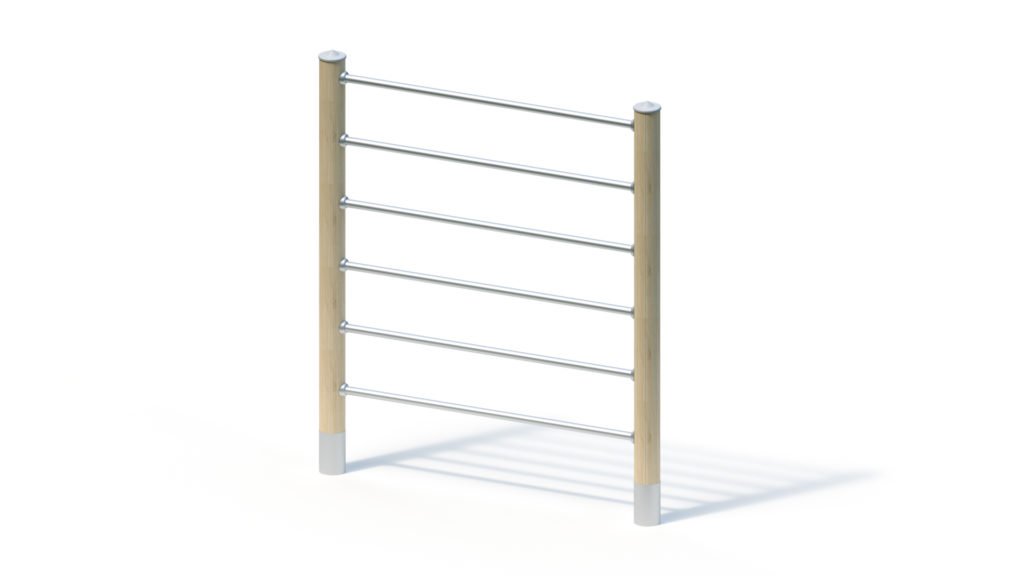

Wall bars

Key Attributes

Age Group


Area of Use

Public Playgrounds



Suitable for

Suitable for
children from 5 years,
public playgrounds etc.,
sporting activities.

Techincal Specifications

Lifting Device


Total Length

1.75 m

Total Width

0.12 m

Total Height

2.05 m

Minimum Space Length

5.30 m

Minimum Space Width

3.70 m

Minimum Space Height

2.05 m

Heaviest Single Piece

25.00 kg

(Total) Weight

70.00 kg

Free Height of Fall

1.92 m

Platform Heights



Foundation 1

2 pieces - 0.50 x 0.50 x 0.60 m volume: 0.15 m3

Foundation 2


Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

1 h

Assembly Details

Assembly time 2 fitters each 0.5 hours (without foundation creation)

Technical Data

, Technical data
Length: 1.75 m
Minimum space: 3.70 x 5.30 m (17 m²)
Total height: 2.05 m
Height of wall bars: 1.90 m
Weight: 25 kg Heaviest individual part,
70 kg in total

post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

climbing rungs made of stainless steel tube, Ø 38 mm, wall thickness 2.5 mm, twist-proof

Metal components: stainless steel 1.4301
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment.
The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
2 pcs. 0.50 x 0.50 x 0.60 m
amount of concrete: 0.30 m³

Free fall height
1.92 m
