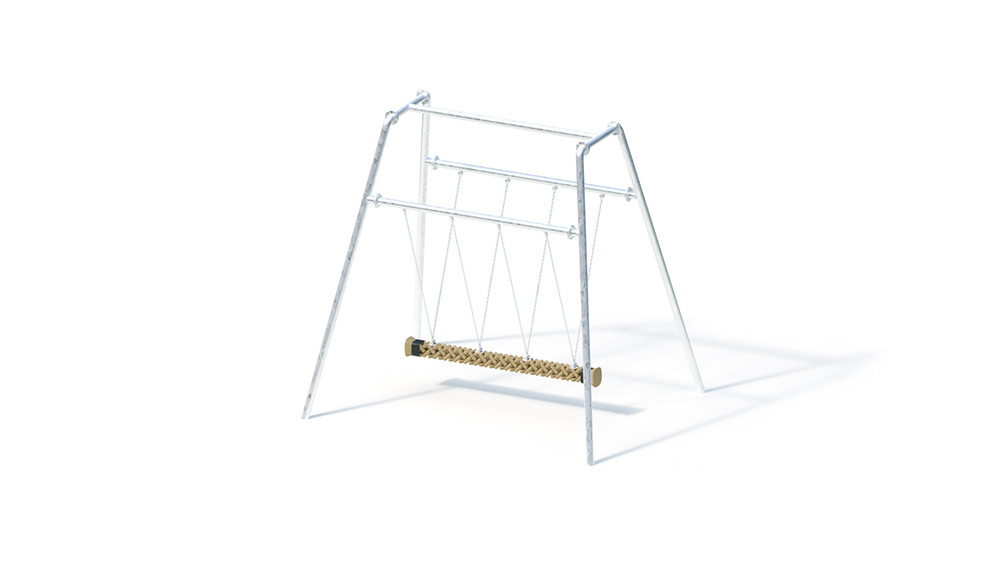

Viking swing (2.50)
Key Attributes
Age Group
8+
Area of Use
public playgrounds
Activity
Swings
Suitable for
Suitable for
children from 8 years,
public playgrounds etc.,
physical activities
Techincal Specifications
Lifting Device
Y
Total Length
3.75 m
Total Width
2.95 m
Total Height
3.49 m
Minimum Space Length
8.40 m
Minimum Space Width
2.95 m
Minimum Space Height
3.49 m
Heaviest Single Piece
105.00 kg
(Total) Weight
410.00 kg
Free Height of Fall
1.60 m
Platform Heights
-
Foundations
Foundation 1
4 pieces - 0.60 x 0.60 x 0.60 m volume: 0.22 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
3 h
Assembly Details
Assembly time 2 fitters each 3 hours (without foundation preparation) plus lifting gear
Technical Data
Technical data
Floor area: 2.95 x 3.75 m
Minimum space: 2.95 x 8.40 m (29 m²)
Swing height: 2.50 m
Weight: 105 kg heaviest individual part
410 kg in total
– Swing supports and swing carriers made of hot-dip galvanized steel tubes Ø 88.9 mm, wall thickness 3.2 mm;
–
Swivel joints: plain bearings – Ropes: square braid, approx. 160 mm made of PP rope on stainless steel chains (7 mm)
Foundation (on site)
4 pcs. 0.60 x 0.60 x 0.60 m
Amount of concrete: 0.86 m³
Free fall height
1.60 m
