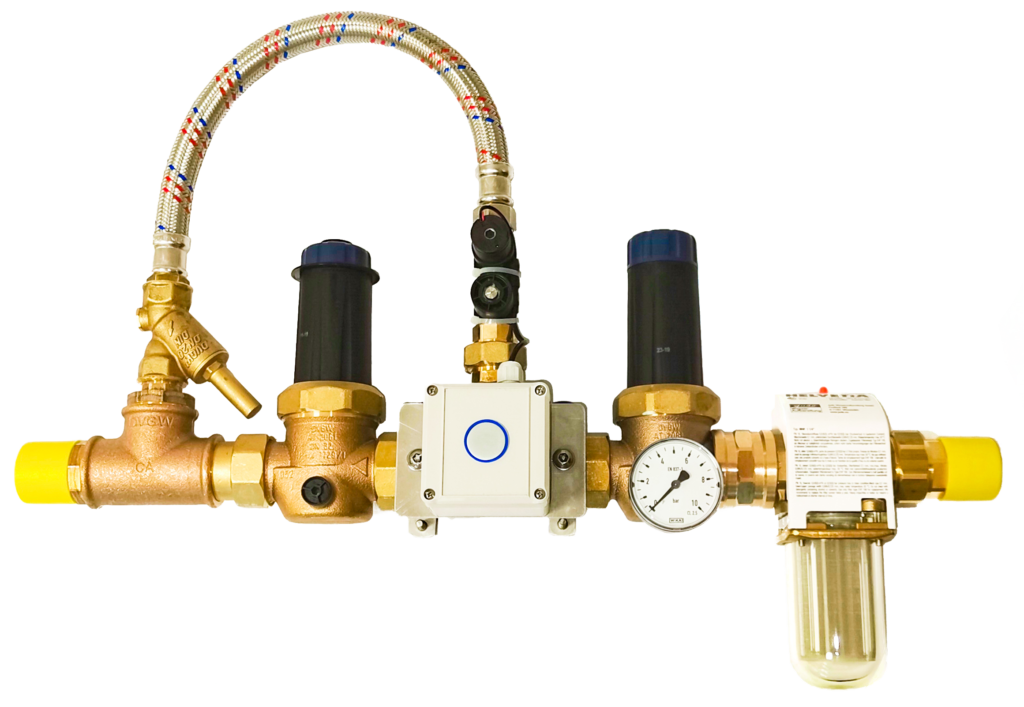

Valve combination 1 1/4 ″ with hygienic flush
Key Attributes
Age Group
-+
Area of Use
Public Playgrounds
Activity
-
Suitable for
–
Techincal Specifications
Lifting Device
-
Total Length
0.70 m
Total Width
0.15 m
Total Height
0.63 m
Minimum Space Length
-
Minimum Space Width
-
Minimum Space Height
-
Heaviest Single Piece
9.50 kg
(Total) Weight
9.50 kg
Free Height of Fall
-
Platform Heights
-
Foundations
Foundation 1
-
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
-
Assembly Time
-
Assembly Details
Installation and connection of the valve combination should be carried out by a specialist installation company.
Technical Data
Weight: 13 kg in total
Device for direct connection of the water pump to a pressurized water line with fine filter for cleaning the water from suspended matter, dirt particles, etc., in order to prevent the membrane valves from becoming dirty and thus prevent malfunctions.
Including hygienic flushing: Device for automatic flushing of the line between the valve combination and water pump with time control and non-return valve, designed for flushing max. 30 m DN 40. Control unit consisting of control module, waterproof welded 6V battery. The factory setting of the hygienic flush to a 12-hour cycle.
