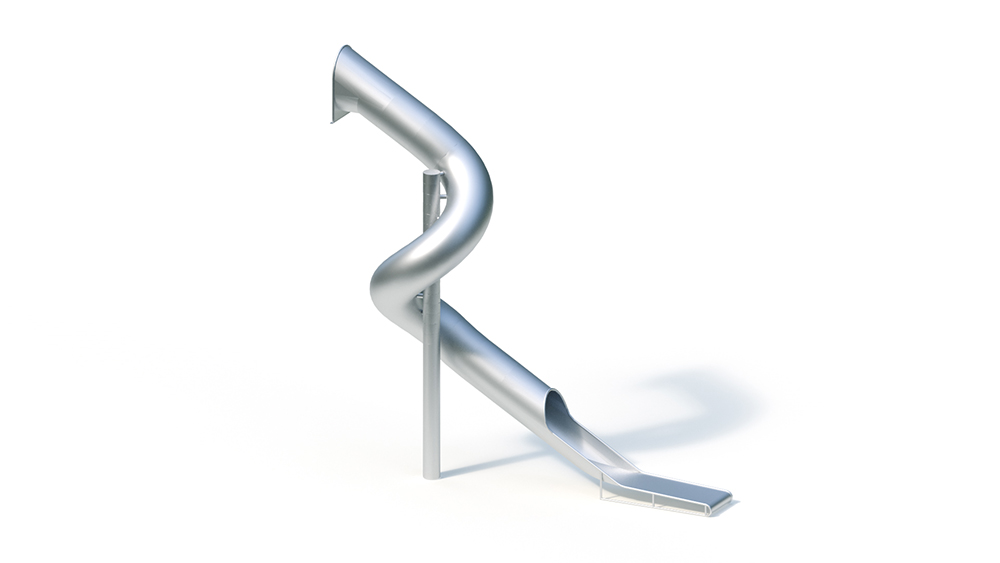

Tunnel spiral slide 30 ° / 38 °

5+

Public Playgrounds

Slide

Suitable for
children from 5 years,
public playgrounds etc.,
physical activities

Y

7.25 m

2.20 m

7.30 m

9.25 m

3.95 m

-

700.00 kg

1034.00 kg

0.71 m

-

1 piece - 0.80 x 0.80 x 1.00 m volume: 0.64 m3

3 pieces - 1.00 x 0.40 x 0.40 m volume: 0.16 m3

-

-

-

-

3 pers.

4 h

Assembly time 3 fitters each 4 hours, plus lifting gear (without creating the foundation)

Technical data
Base area: approx. 2.20 x 7.25 m
Minimum space: approx . 3.95 x 9.25 m Attachment
height: 6.00 m
Sitting height: 6.10 m Slide inclination: 30/38
°
turn (right): 360 °
Tunnel diameter: 0.80 m
Sliding plate thickness: 2.5 mm
Central pylon: Stainless steel tube Ø 298.5 x 7.1 mm

K&K tunnel spiral
slide Slide
segments made of stainless steel, particularly low-noise due to the tubular shape, three-part slide, including connecting flanges for on-site assembly, consisting of the following elements: Course: spiral 360 ° right

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Foundation (on site)
1 pc. 0.80 x 0.80 x 1.00 m
3 pcs. 1.00 x 0.40 x 0.40 m
amount of concrete: 1.12 m³ Free fall height 0.71 m
