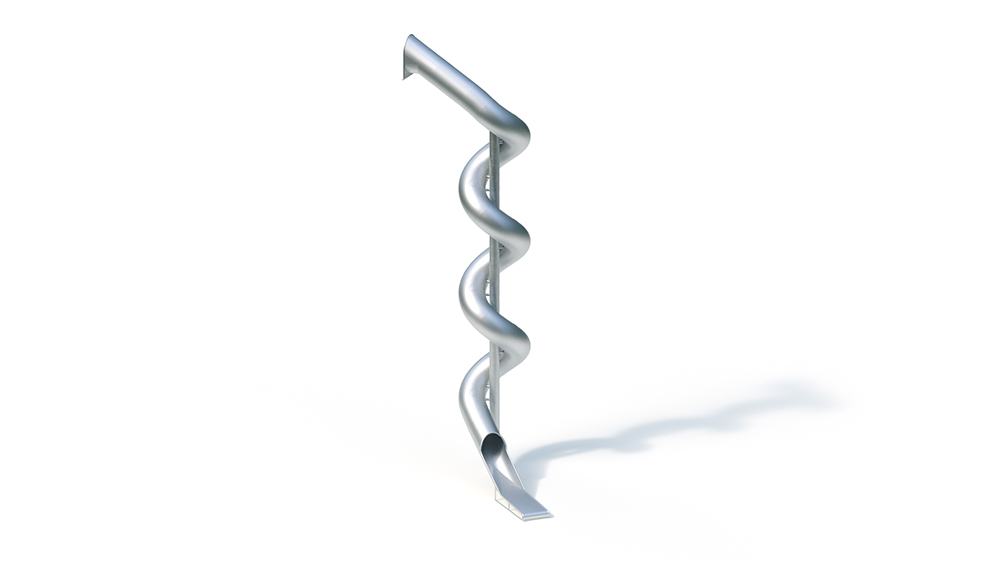

Tunnel spiral slide 30 ° / 38 °

-+

Public Playgrounds

Slide

–

Y

5.85 m

4.85 m

13.30 m

7.60 m

6.50 m

-

2215.00 kg

2665.00 kg

0.71 m

-

1 piece - 0.80 x 0.80 x 1.00 m volume: 0.64 m3

3 pieces - 1.00 x 0.40 x 0.40 m volume: 0.16 m3

-

-

-

-

3 pers.

6 h

-

Brief description of the
K&K spiral tunnel slide (12.00 m); 9 screw segments with portholes

Flange mounting

Mounting height: 12.00 m
a seat height: 12.10 m
chute inclination: 30/38 °
Tunneldurchmessser: 0.80 m
skid plate thickness: 2.5 mm
means pylon: stainless steel tube 298.5 x 7.1 mm Ø

Slide segments made of stainless steel / dome light made of unbreakable polycarbonate, particularly low-noise due to the tubular shape, three-part slide, including connecting flanges for on-site assembly, consisting of the following elements:

– 16100 K&K tunnel
slide single seat 30 ° – 16110120 K&K tunnel slide straight 30 °,
length 1.20 m
– 16140 K&K tunnel slide shaft 30 ° / 38 °
– 16158 K&K tunnel slide screw 38 °,
counterclockwise
– 16158002 K&K tunnel slide screw 38 °,
anticlockwise, with porthole
– 16148 K&K tunnel slide shaft 38 ° / 30 °
– 16180 K&K tunnel slide outlet 30 °

For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.

Foundation (on site)
1 pc. 0.80 x 0.80 x 1.00 m
3 pcs. 1.00 x 0.40 x 0.40 m
amount of concrete: 1.12 m³
