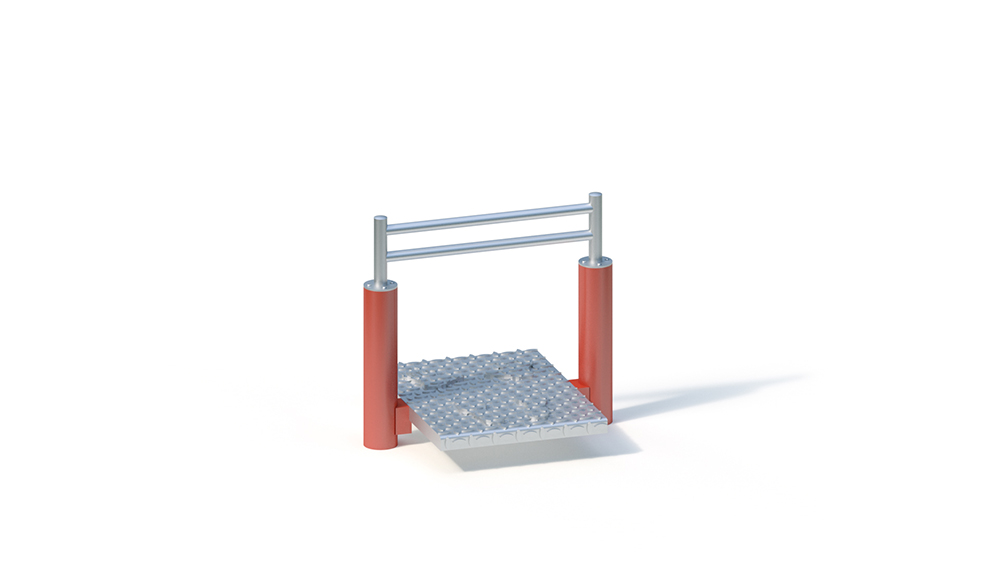

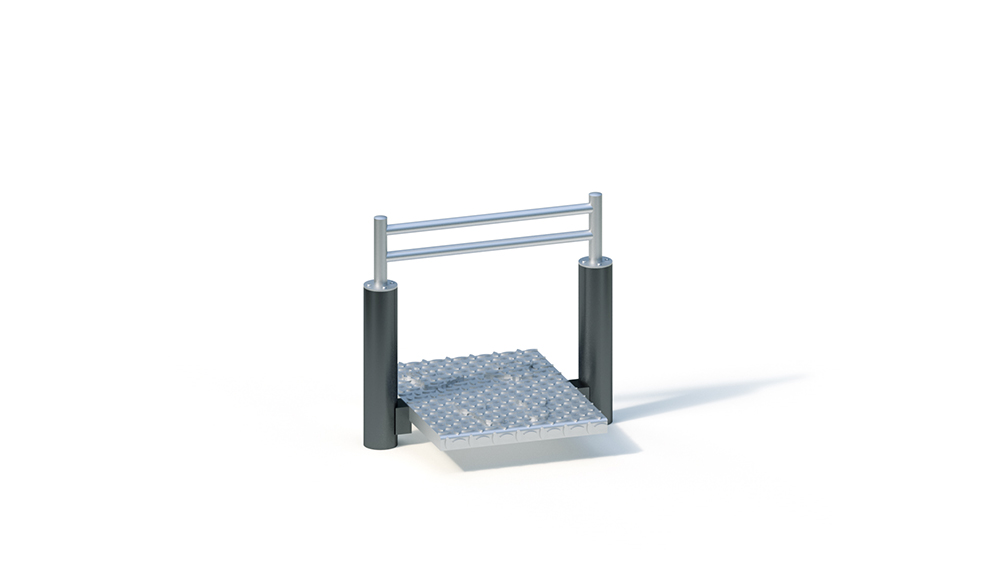

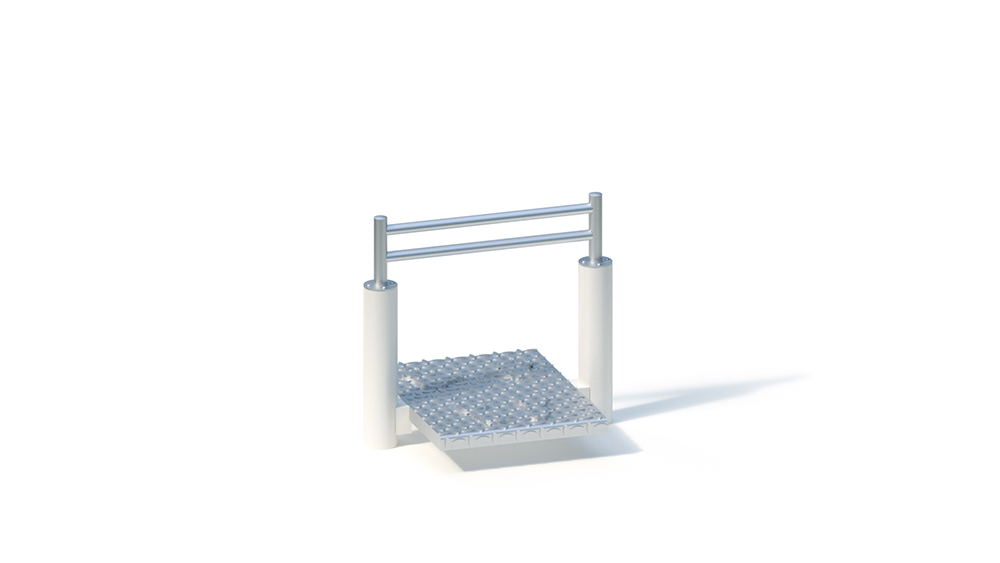

Trunk flexion trainer
Key Attributes
Age Group
18+
Area of Use
Trim Paths
Activity
Sport
Suitable for
Suitable for
adult
trim trails etc.
sporting activities
Techincal Specifications
Lifting Device
-
Total Length
0.95 m
Total Width
0.85 m
Total Height
0.85 m
Minimum Space Length
3.95 m
Minimum Space Width
3.85 m
Minimum Space Height
0.85 m
Heaviest Single Piece
25.00 kg
(Total) Weight
65.00 kg
Free Height of Fall
0.15 m
Platform Heights
-
Foundations
Foundation 1
2 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
1 h
Assembly Details
Assembly time 2 fitters 1 hour each (without foundation creation)
Technical Data
Technical data
Floor area: 0.85 x 0.95 m
Minimum space: 3.85 x 3.95 m (13 m²)
Total height: 0.85 m
Weight: 25 kg heaviest individual part
65 kg in total
Post: steel tube Ø 121 x 4 mm, hot-dip galvanized, powder-coated. Post color optionally: red / RAL 2002, blue / RAL 5015, white / RAL 9010 and black / RAL 9005. Metal components
: profiled stainless steel
sheet , stainless steel station sign (see item no. 0-57401-000) can be supplied at an extra charge.
Foundations (on site)
2 pcs. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.13 m³
Free fall height
0.15 m
