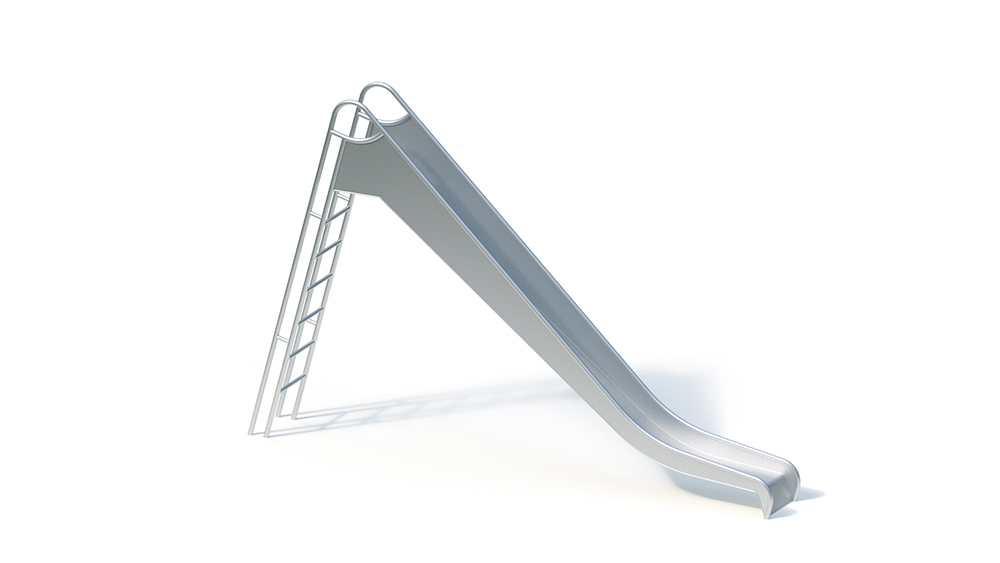

Trestle slide (2.00)
Key Attributes
Age Group
5+
Area of Use
Public Playgrounds
Activity
Slide
Suitable for
Suitable for
children from 5 years of age,
public playgrounds, etc.
Exercise activities.
Techincal Specifications
Lifting Device
-
Total Length
4.35 m
Total Width
0.50 m
Total Height
2.75 m
Minimum Space Length
7.85 m
Minimum Space Width
4.15 m
Minimum Space Height
3.50 m
Heaviest Single Piece
100.00 kg
(Total) Weight
165.00 kg
Free Height of Fall
2.00 m
Platform Heights
-
Foundations
Foundation 1
2 pieces - 0.85 x 0.40 x 0.40 m volume: 0.14 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
1 h
Assembly Details
Assembly time 2 fitters 1 hour each (without foundation creation)
Technical Data
Technical data
Base area: 0.50 x 4.35 m
Minimum space: 4.15 x 7.85 m (27 m²)
Total height: 2.75 m
Sitting height: 2.00 m Slide incline
: 38 ° Slide width
: 0.41 m Side height
: 0.17 m
Weight: 130 kg heaviest single part
165 kg in total
Two-part stainless steel construction. Step ladder with handrail. Seamless sitting, sliding and run-out area, particularly low-noise thanks to the sliding plate thickness of 3 mm.
For your planning, please note that stainless steel slides are oriented to the north-east due to the possible heating of the slide surface or are in the partial shade of trees.
Foundations (on site)
2 pcs. 0.40 x 0.85 x 0.40 m
Amount of concrete: 0.27 m³
Free fall height
2.00 m
