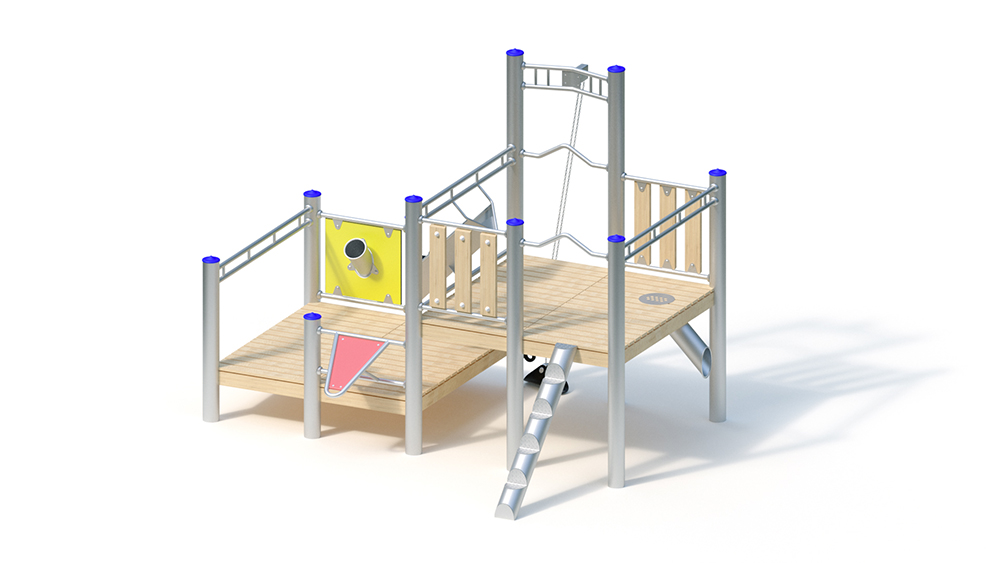

Transfer station
Key Attributes
Age Group
2+
Area of Use
Public Playgrounds
Activity
Manual activity
Suitable for
Suitable for ages 2+,
public playgrounds, etc.
social / manual activities
Techincal Specifications
Lifting Device
-
Total Length
3.40 m
Total Width
3.00 m
Total Height
2.55 m
Minimum Space Length
6.40 m
Minimum Space Width
6.00 m
Minimum Space Height
2.55 m
Heaviest Single Piece
65.00 kg
(Total) Weight
435.00 kg
Free Height of Fall
1.00 m
Platform Heights
0.40 m, 1.00 m
Foundations
Foundation 1
1 piece - 0.30 x 0.30 x 0.40 m volume: 0.04 m3
Foundation 2
10 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
7 h
Assembly Details
Assembly time 2 fitters 7 hours each (without foundation creation)
Technical Data
Technical data
Floor area: 3.00 x 3.40 m
Minimum space: 6.00 x 6.40 m (34 m²)
Total height: 2.55 m
Platform height: 0.40 / 1.00 m
Weight: 65 kg Heaviest individual part
435 kg in total
Support
posts Support posts made of stainless steel tube Ø 120 mm covered with non-detachable post caps made of stainless steel.
Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.
Attachment parts
– Robinia
wood balustrade , 120 x 30 mm – Upright railing, anti-roll-off, made of stainless steel tube,
Ø 33.7 x 2 mm
– Tandem railing made of stainless steel tube , Ø 33.7 x 2 mm – Climbing posts made of stainless steel tube Ø 159 × 3 mm, step surface made of profiled stainless steel
sheet – step channel with sand wheel made of rubber with fabric insert
– sand elevator with transport container made of rubber and a 4 mm stainless steel chain, designed as a circumferential element so that the transport container cannot be pulled into adjacent play areas or
open spaces – pouring pipe wall made of HPL laminate board with sand pouring pipe including shut-off valve
– Sand pouring pipe
– Sand slide made of stainless steel pipe with HPL laminate board
Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening.
Foundations (on site)
1 pc. 0.30 x 0.30 x 0.40 m
10 pieces. 0.40 x 0.40 x 0.40 m
Amount of concrete: 0.68 m³
Free fall height
1.00 m
