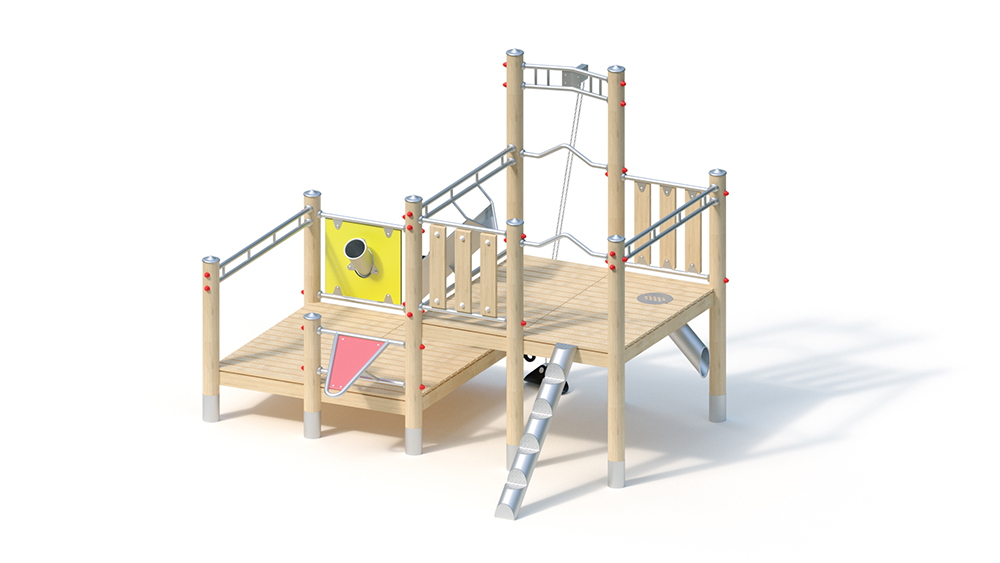

Transfer station

2+

Public Playgrounds

Manual activity

Suitable for ages 2+,
public playgrounds, etc.
social / manual activities

-

3.40 m

3.00 m

2.55 m

6.40 m

6.00 m

2.55 m

65.00 kg

435.00 kg

1.00 m

0.40 m, 1.00 m

1 piece - 0.30 x 0.30 x 0.40 m volume: 0.04 m3

10 pieces - 0.40 x 0.40 x 0.40 m volume: 0.07 m3

-

-

-

-

2 pers.

7 h

Assembly time 2 fitters 7 hours each (without foundation creation)

Technical data
Floor area: 3.00 x 3.40 m
Minimum space: 6.00 x 6.40 m (34 m²)
Total height: 2.55 m
Platform height: 0.40 / 1.00 m
Weight: 65 kg Heaviest individual part
435 kg in total

Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Platform
floor Platform floor made of boards, 30 mm thick and all-round square timber beams 45 x 100 mm. The dried robinia lumber is planed, chamfered and free from rotten branches. Non-positive floor fastening thanks to special stainless steel brackets with a continuous bolt connection.

Attachment parts
– wooden balustrade made of robinia, 120 x 30 mm
– iron railing, anti-roll-off, made of stainless steel tube, Ø 33.7 x 2 mm
– tandem railing made of stainless steel tube , Ø 33.7 x 2 mm.
– Climbing posts made of stainless steel tube Ø 159 × 3 mm, step surface made of profiled stainless steel
sheet – Step channel with sand wheel made of rubber with fabric insert
– Sand elevator with transport container made of rubber and a 4 mm stainless steel chain, designed as a circumferential element so that the transport container does not enter adjacent play areas or open spaces can be pulled
– discharge pipe wall made of HPL laminate board with sand discharge pipe including shut-off valve
– sand discharge pipe – sand
chute made of stainless steel pipe with HPL laminate board

Metal components: stainless steel. The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking. The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment. The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
10 pcs. 0.40 x 0.40 x 0.40 m
1 pc. 0.30 x 0.30 x 0.40 m
amount of concrete: 0.68 m³

Free fall height
1.00 m
