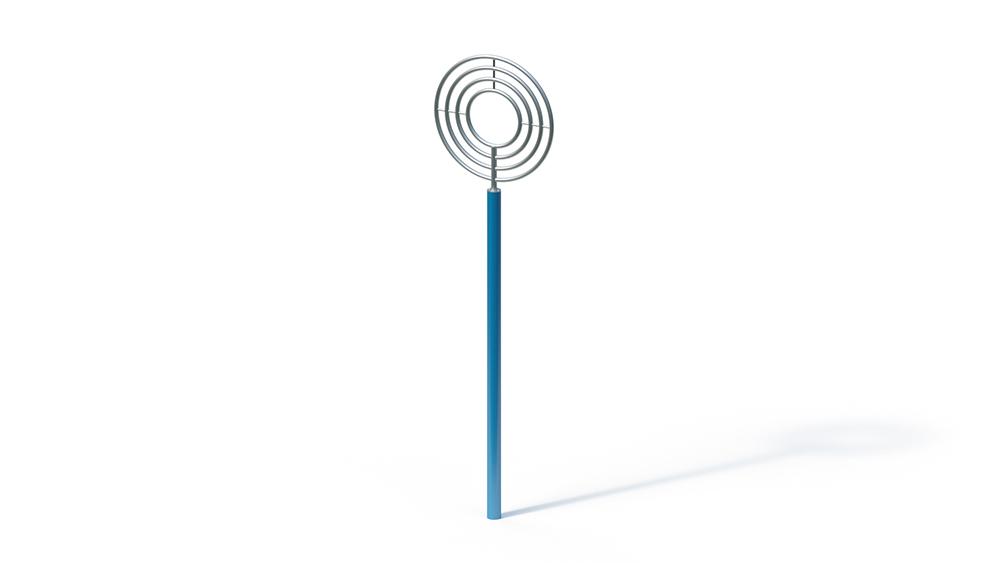

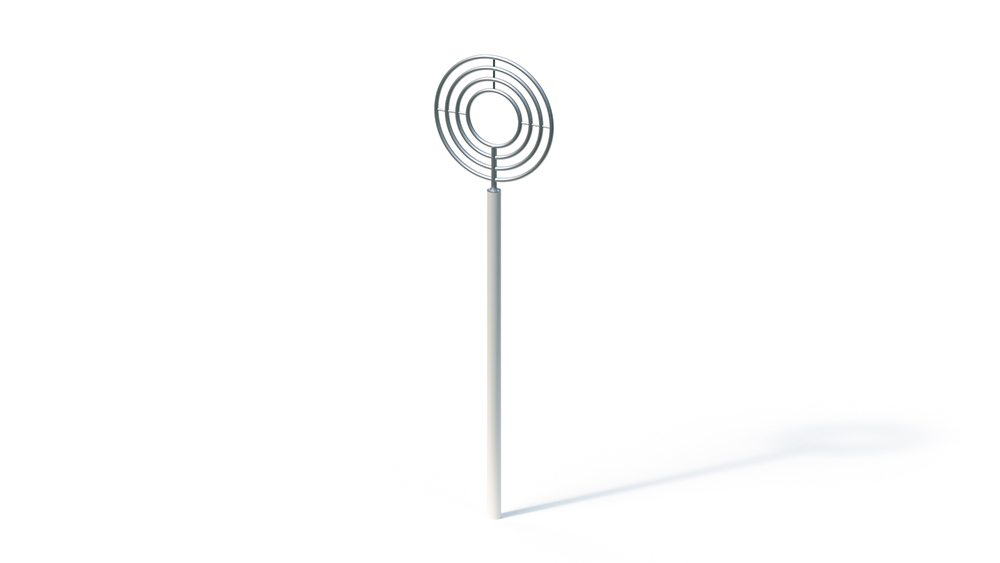

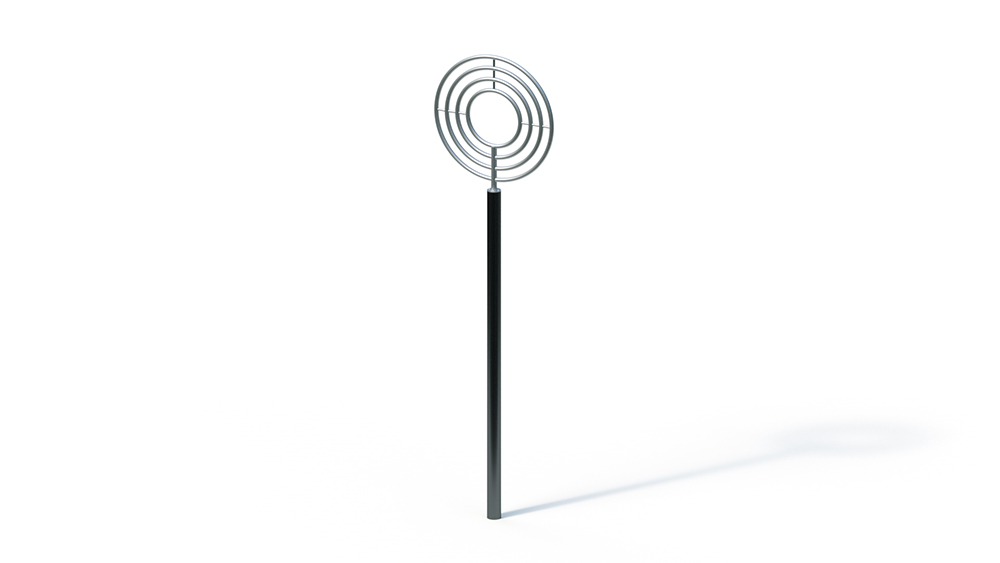

Target throw trainer
Key Attributes
Age Group
18+
Area of Use
Trim Paths
Activity
Sport
Suitable for
Suitable for
adult
trim trails etc.
sporting activities
Techincal Specifications
Lifting Device
-
Total Length
1.15 m
Total Width
1.15 m
Total Height
4.20 m
Minimum Space Length
3.15 m
Minimum Space Width
3.15 m
Minimum Space Height
4.20 m
Heaviest Single Piece
50.00 kg
(Total) Weight
75.00 kg
Free Height of Fall
-
Platform Heights
-
Foundations
Foundation 1
1 piece - 0.60 x 0.60 x 0.60 m volume: 0.22 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
2 pers.
Assembly Time
1 h
Assembly Details
Assembly time 2 fitters 1 hour each (without foundation creation)
Technical Data
Technical data
Base area: Ø 1.15 m
Minimum space: Ø 3.15 m (8 m²)
Total height: 4.20 m
Weight: 50 kg heaviest individual part
75 kg in total
Post: steel tube Ø 121 x 4 mm, hot-dip galvanized, powder-coated and stove-enamelled. Post color optionally: red / RAL 2002, blue / RAL 5015, white / RAL 9010 and black / RAL 9005. Metal components
: Stainless steel
station sign (see item no. 0-57418-000) can be supplied at an extra charge.
Foundation (on site)
1 pc. 0.60 x 0.60 x 0.60 m
Amount of concrete: 0.22 m³
