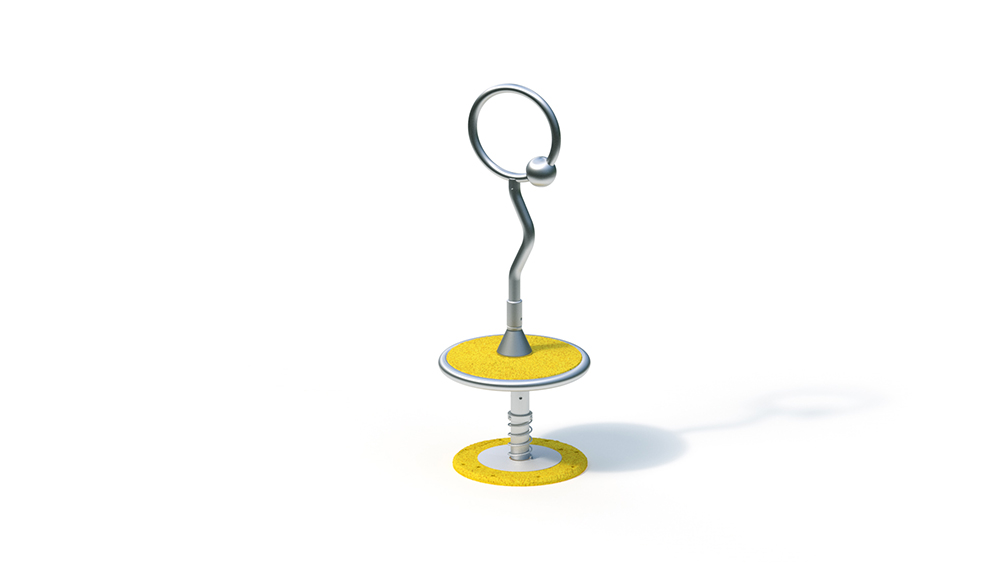

Tango dancer

Key Attributes

Age Group


Area of Use

Public Playgrounds



Suitable for

Suitable for
children from 6 years,
public playgrounds etc.,
physical activities

Techincal Specifications

Lifting Device


Total Length

0.49 m

Total Width

0.49 m

Total Height

1.32 m

Minimum Space Length

3.86 m

Minimum Space Width

3.86 m

Minimum Space Height

1.32 m

Heaviest Single Piece

54.00 kg

(Total) Weight

71.00 kg

Free Height of Fall

0.45 m

Platform Heights



Foundation 1

1 piece - 0.80 x 0.80 x 0.53 m volume: 0.34 m3

Foundation 2


Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

2 pers.

Assembly Time

1 h

Assembly Details

Assembly time 2 fitters each 0.5 hours (without foundation creation)

Technical Data

Technical data
Base area: Ø 0.45 m
Minimum space: Ø 3.86 m (12 m²)
Total height: 1.32 m
Weight: 54 kg Heaviest individual part
71 kg in total

– Floor and structure rotating with and deflecting in all directions – Base
and upper side of the housing equipped with rubber granulate (EPDM), granulate color optionally: red, green, blue or yellow
– Housing and superstructures made of stainless steel
– Rotation movement: roller bearings, tamper-proof and protected against dirt
– Deflection movement: tamper-proof and dirt-protected, limited in movement, unloaded by spring force, self-resetting
– anchoring with a concrete foundation ring made of hot-dip galvanized steel

Foundation (on site)
1 pc. 0.80 x 0.80 x 0.53 m
Amount of concrete: 0.34 m³

Free fall height
0.45 m

Please note:
Under all playground equipment that causes a forced movement of the user (e.g. swings, slides, seesaw devices, cable cars, carousels, etc.), shock-absorbing floors with fall protection quality 1.00 m must be provided over the entire impact area.
