137414_M

Swing Frame

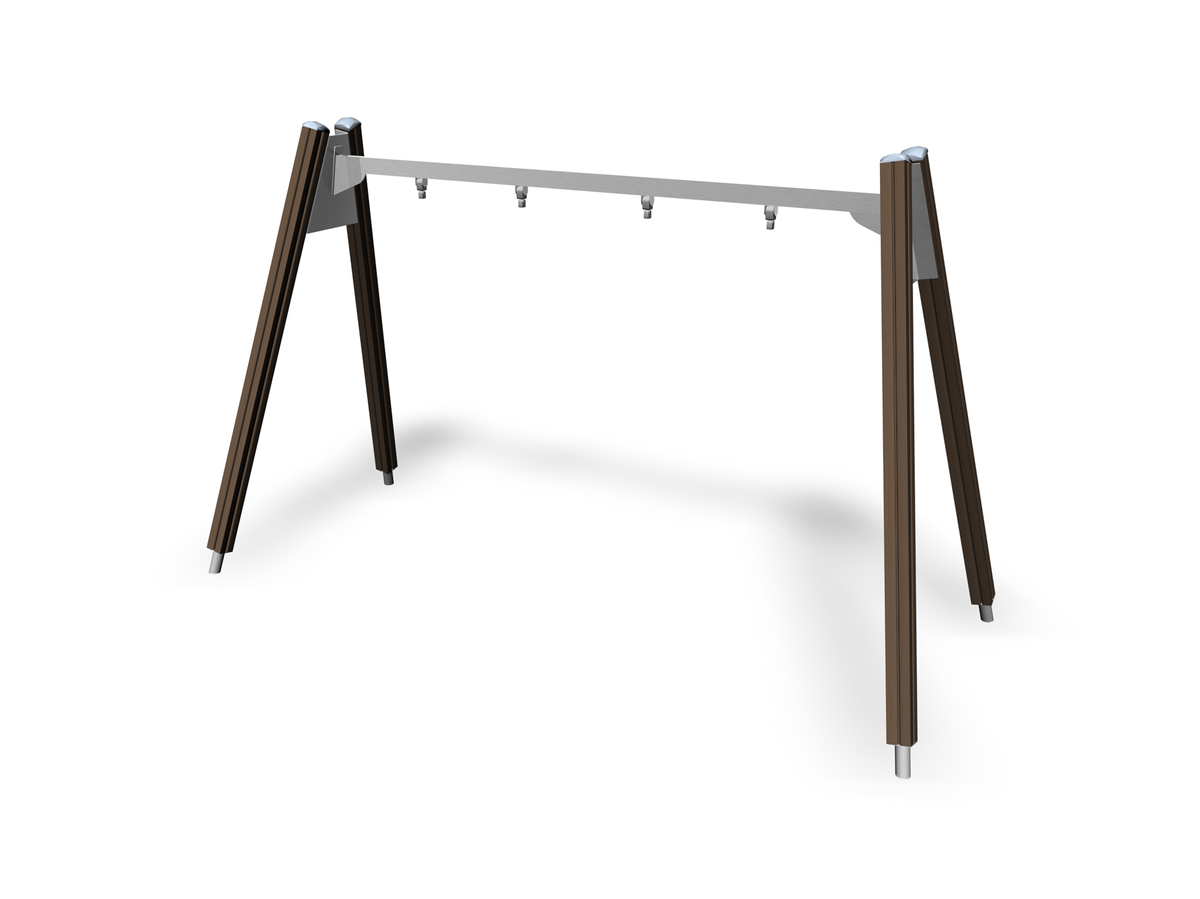

Swing frame for two swings, matching the Finno family of products. The frame height is 2,30 mm. The chain is 160 cm long. Swinging stimulates the vestibular system located in the inner ear, which in turn develops motor coordination and balance.

Safety StandardsEN 1176-1, 2:2008
User Age1+
Amount Of Users2
Download Product Sheet

Technical Information

Length

3790MM

Width

1530MM

Height

2300MM

Largest Part

2940MM

Min Space Height

2700MM

Falling Space Area

23.3M²

Falling Space Length

7390MM

Falling Space Width

3150MM

Impact Area

23.3M²

Max Free Fall Height

1200MM

Express Delivery
Made In Finland

Materials

Material Text

The swinging motion also soothes the mind. The painted framework of the swings consists of pressure-impregnated, glue-laminated, fine-grained timber and a steel beam in a grey colour. The chains of all our swings are made of ø 6 mm stainless steel, which guarantees the best protection against corrosion even in the harshest conditions. Swing bearings are cast stainless steel passivated against corrosion. The structure has been efficiently designed to eliminate all movement outside the actual bearing surfaces. The bearings are soundless and highly durable against mechanical and environmental strain. The bearings do not require maintenance as such, but are easy to detach with tools, for seasonal storage for example.Underground foundation without concreting can be performed using foundation plates. You can choose the foundation type when placing your order.

Installation

Installation Time

6H (for 1)

Netto Weight

106.554KG
