0-40230-001

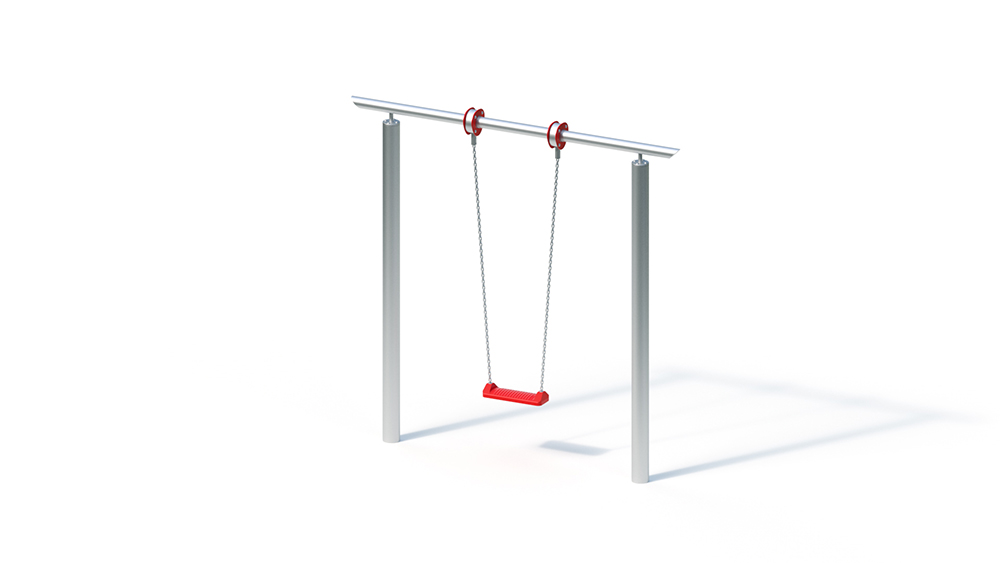

Swing (2.40)

Key Attributes

Age Group

-+

Area of Use

public playgrounds

Activity

-

Suitable for

Suitable for
children from 4 years,
public playgrounds, etc.,
exercise activities.

Techincal Specifications

Lifting Device

-

Total Length

-

Total Width

-

Total Height

2.54 m

Minimum Space Length

7.85 m

Minimum Space Width

2.50 m

Minimum Space Height

2.54 m

Heaviest Single Piece

35.00 kg

(Total) Weight

100.00 kg

Free Height of Fall

1.45 m

Platform Heights

-

Foundations

Foundation 1

-

Foundation 2

-

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

2 pers.

Assembly Time

2 h

Assembly Details

Assembly time 2 fitters 1 hour each (without foundation creation)

Technical Data

Technical data
Minimum space: 2.50 x 7.85 m (14 m²)
Swing height: 2.40 m
Weight: 35 kg Heaviest single part
100 kg in total

– Post made of stainless steel tube, Ø 120 mm, material 1.4301
– Swing bracket : stainless steel
tube, Ø 76.1 mm, material 1.4301 – Pivot bearing: roller bearing including swivel, front bearing cover made of stainless steel, additionally powder-coated and stove-enamelled. Color: red / RAL 2002
– swing chain Ø 7mm: stainless steel
– safety swing seat, red made of rubber with dimensionally stable aluminum insert and seamless single-point
suspension – on the swing axis and on the swing seat: chain attachment with clamp adapter made of stainless steel

Foundations (on site)
2 pcs. 0.80 x 1.00 x 0.50 m
amount of concrete: 0.80 m³

Free fall height
1.45 m
