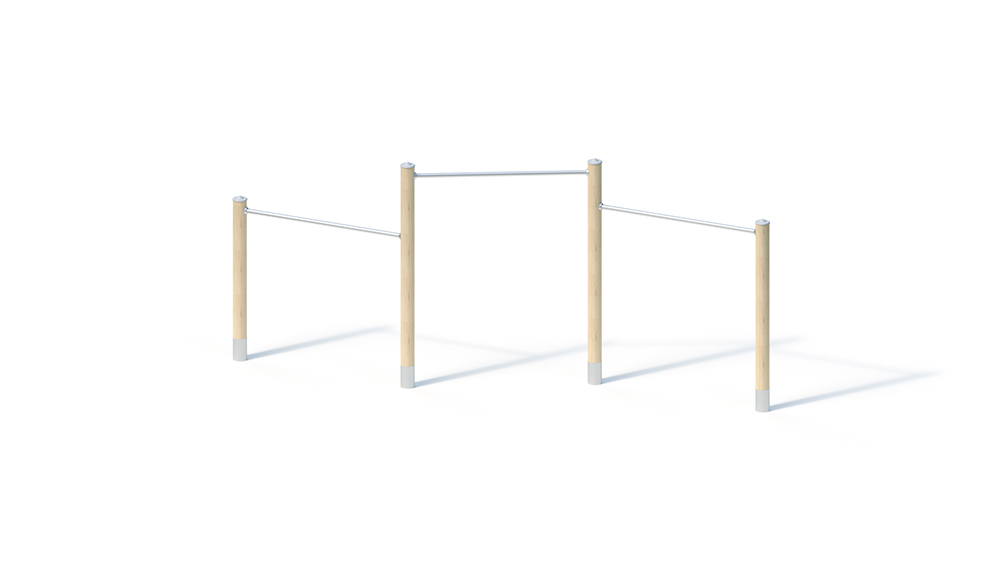

Step bar (1.35 / 1.90 / 1.60)
Key Attributes
Age Group
-+
Area of Use
Public Playgrounds
Activity
Sport
Suitable for
Suitable for
children from 3 years,
public playgrounds etc.,
sporting activities
Techincal Specifications
Lifting Device
-
Total Length
4.75 m
Total Width
0.95 m
Total Height
2.05 m
Minimum Space Length
7.80 m
Minimum Space Width
4.50 m
Minimum Space Height
2.05 m
Heaviest Single Piece
25.00 kg
(Total) Weight
95.00 kg
Free Height of Fall
1.92 m
Platform Heights
-
Foundations
Foundation 1
4 pieces - 0.50 x 0.50 x 0.60 m volume: 0.15 m3
Foundation 2
-
Foundation 3
-
Foundation 4
-
Foundation 5
-
Foundation 6
-
Assembly
Number of Installers
1 person
Assembly Time
1 h
Assembly Details
Assembly time 1 fitter every 1 hour (without foundation creation)
Technical Data
Technical data
Floor space: 4.75 x 0.95 m
Minimum space: 7.80 x 4.50 m (27 m²)
Total height: 2.05 m
Bar height : 1.35 / 1.90 / 1.60 m
Weight: 25 kg heaviest single part
95 kg in total
Support
post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.
Add-on parts,
horizontal bar made of stainless steel tube, Ø 38 mm, wall thickness 2.5 mm, twist-proof
Metal components: stainless steel 1.4301
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment.
The screw connections are secured against unauthorized loosening with cover caps.
Foundations (on site)
4 pcs. 0.50 x 0.60 x 0.50 m
amount of concrete: 0.60 m³
Free fall height
1.92 m
