0-53125-500

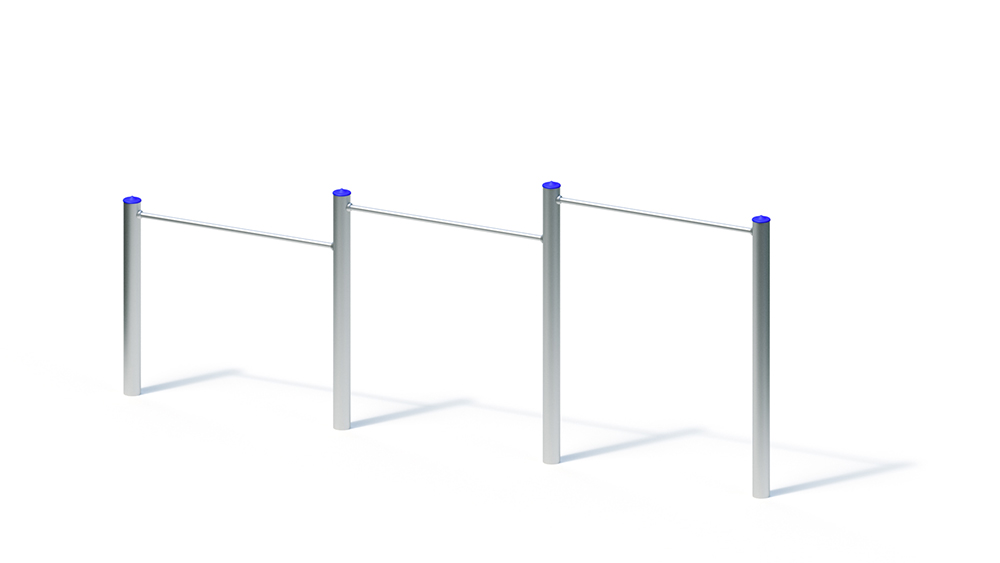

Step bar (1.30 / 1.60 / 1.90)

Key Attributes

Age Group

3+

Area of Use

Public Playgrounds

Activity

Sport

Suitable for

Suitable for
children from 3 years,
public playgrounds etc.,
sporting activities

Techincal Specifications

Lifting Device

-

Total Length

4.95 m

Total Width

-

Total Height

2.05 m

Minimum Space Length

8.25 m

Minimum Space Width

3.70 m

Minimum Space Height

2.05 m

Heaviest Single Piece

25.00 kg

(Total) Weight

95.00 kg

Free Height of Fall

1.92 m

Platform Heights

-

Foundations

Foundation 1

4 pieces - 0.60 x 0.50 x 0.50 m volume: 0.15 m3

Foundation 2

-

Foundation 3

-

Foundation 4

-

Foundation 5

-

Foundation 6

-

Assembly

Number of Installers

1 person

Assembly Time

1 h

Assembly Details

Assembly time 1 fitter 1 hour (without foundation creation)

Technical Data

Technical data
Length: 4.95 m
Minimum space: 8.25 x 3.70 m (26 m²)
Total height: 2.05 m
Bar height : 1.30 / 1.60 / 1.90 m
Weight: 25 kg Heaviest individual part
95 kg a total of

Support
posts Support posts made of stainless steel tube Ø 120 mm, wall thickness 3 mm, covered with non-detachable post caps made of stainless steel

Add-on parts,
horizontal bar made of stainless steel tube, Ø 38 mm, wall thickness 2.5 mm, twist-proof

Metal
components : stainless steel The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment.
The screw connections are secured against unauthorized loosening.

Foundations (on site)
4 pcs. 0.50 x 0.60 x 0.50 m

Free fall height
1.92 m
