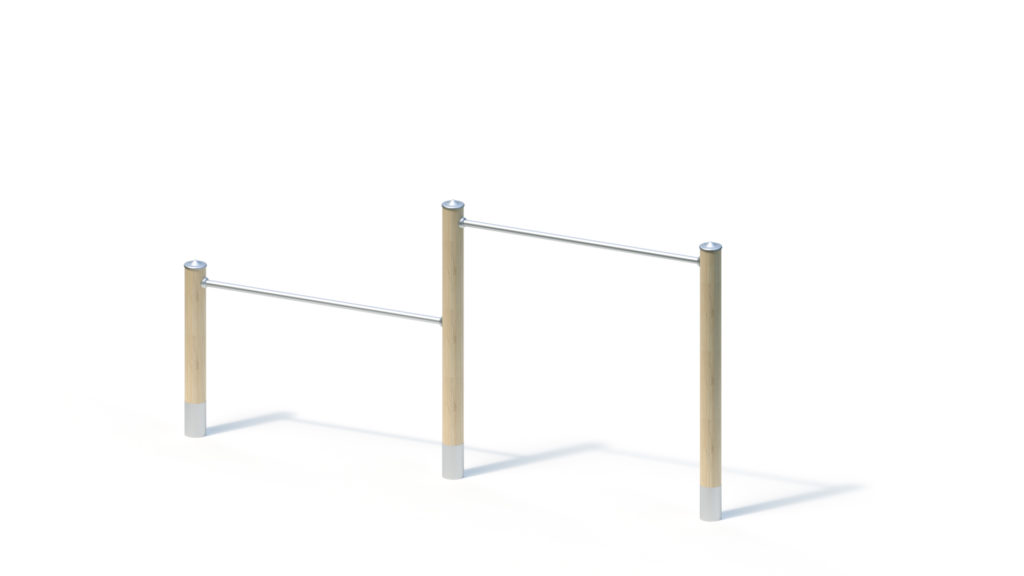

Step bar (0.90 / 1.50)

Key Attributes

Age Group


Area of Use

Public Playgrounds



Suitable for

Suitable for
children from 3 years,
public playgrounds etc.,
sporting activities

Techincal Specifications

Lifting Device


Total Length

3.35 m

Total Width

0.12 m

Total Height

1.65 m

Minimum Space Length

6.35 m

Minimum Space Width

3.15 m

Minimum Space Height

1.65 m

Heaviest Single Piece

20.00 kg

(Total) Weight

60.00 kg

Free Height of Fall

1.52 m

Platform Heights



Foundation 1

3 pieces - 0.60 x 0.50 x 0.50 m volume: 0.15 m3

Foundation 2


Foundation 3


Foundation 4


Foundation 5


Foundation 6



Number of Installers

1 person

Assembly Time

1 h

Assembly Details

Assembly time 1 fitter every 1 hour (without foundation creation)

Technical Data

Technical data
Length: 3.35 m
Minimum space: 6.35 x 3.15 m (22 m²)
Total height: 1.65 m
Bar height : 0.90 / 1.50 m
Weight: 20 kg heaviest individual part
60 kg in total

post Support post made of Robinia plywood, milled cylindrically, Ø 120 mm. Unprotected end grain surfaces are covered with non-detachable post caps made of stainless steel.
Pipe stand made of stainless steel for the foundation and mounting of robinia round wood posts, Ø 120 mm, below the playing level.

Add-on parts,
horizontal bar made of stainless steel tube, Ø 38 mm, wall thickness 2.5 mm, twist-proof

Metal components: stainless steel 1.4301
The robinia wood is provided with a water-repellent, breathable protective coating. In addition to protecting against moisture, this treatment reduces cracking.
The modular add-on parts introduce their forces directly into the support posts via a special adapter attachment.
The screw connections are secured against unauthorized loosening with cover caps.

Foundations (on site)
3 pcs. 0.50 x 0.60 x 0.50 m
amount of concrete: 0.45 m³

Free fall height
1.52 m
